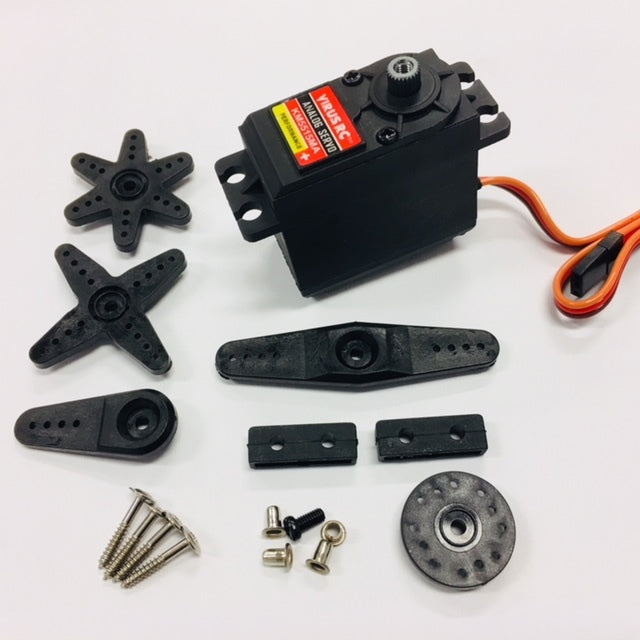

VIRUS 15kg MG Analog Standard Servo - VRSKM5515MA

VIRUS 15kg MG Analog Standard Servo - VRSKM5515MA

Code: VRSKM5515MA
Gear: Full metal
Spline: 25T
Motor: DC motor
Bearing: 2BB
Dead band: 4μs default
Waterproof: No
Operating Voltage: DC4.8~6.0V
Working frequence: 1520μs/50hz

FEATURE:
-- High performance analog standard servo
-- High-precision Taiwan-made metal gears( copper+ titamium)

--Middle CNC aluminium case

-- High quality brushed motor
-- Dual ball bearings

SPECIFICATIONS:
Operating Speed (4.8V): 0.18 sec/60 degrees
Operating Speed (6V): 0.16 sec/60 degrees
Stall Torque (4.8V): 14.25 kg.cm (197.93 oz/in)
Stall Torque (6V): 15.32 kgã??cm (212.79 oz/in)
Dimensions: 40.5X20.2X40.5mm /1.59 X0.80X1.58in
Weight: 60g (2.12oz)

FEATURE:
-- High performance analog standard servo
-- High-precision Taiwan-made metal gears( copper+ titamium)

--Middle CNC aluminium case

-- High quality brushed motor
-- Dual ball bearings

SPECIFICATIONS:
Operating Speed (4.8V): 0.18 sec/60 degrees
Operating Speed (6V): 0.16 sec/60 degrees
Stall Torque (4.8V): 14.25 kg.cm (197.93 oz/in)
Stall Torque (6V): 15.32 kgã??cm (212.79 oz/in)
Dimensions: 40.5X20.2X40.5mm /1.59 X0.80X1.58in
Weight: 60g (2.12oz)
Connector Wire Length: JR 265 mm (10.43in)
