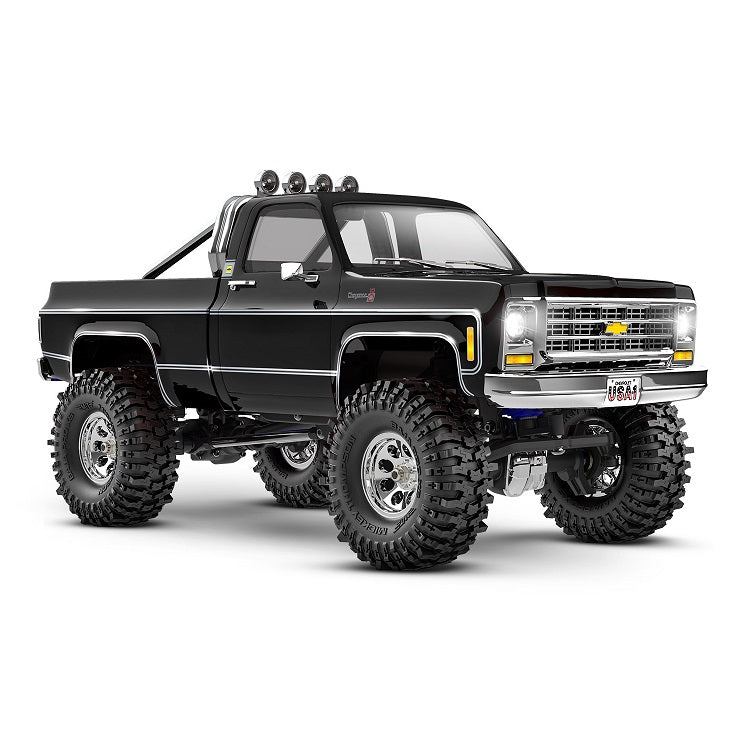

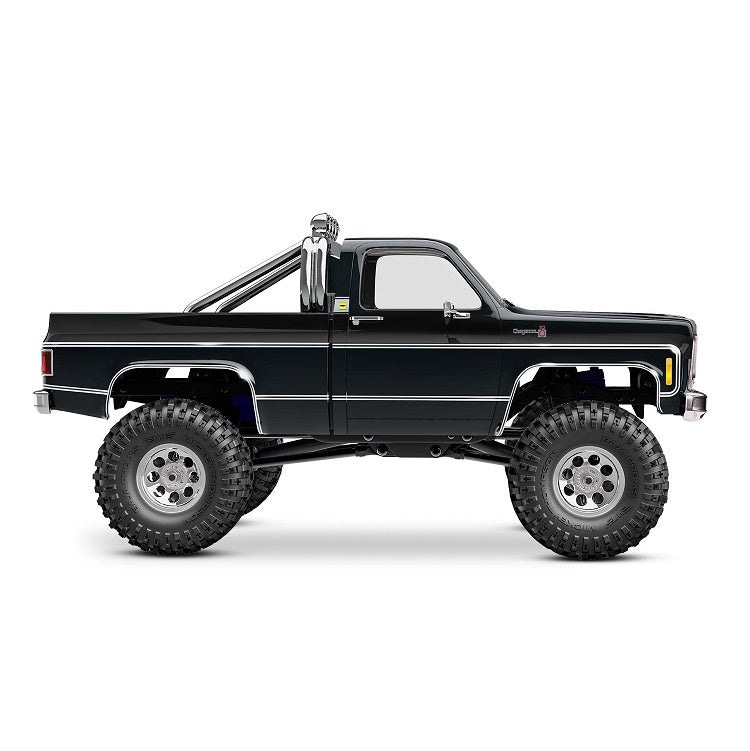

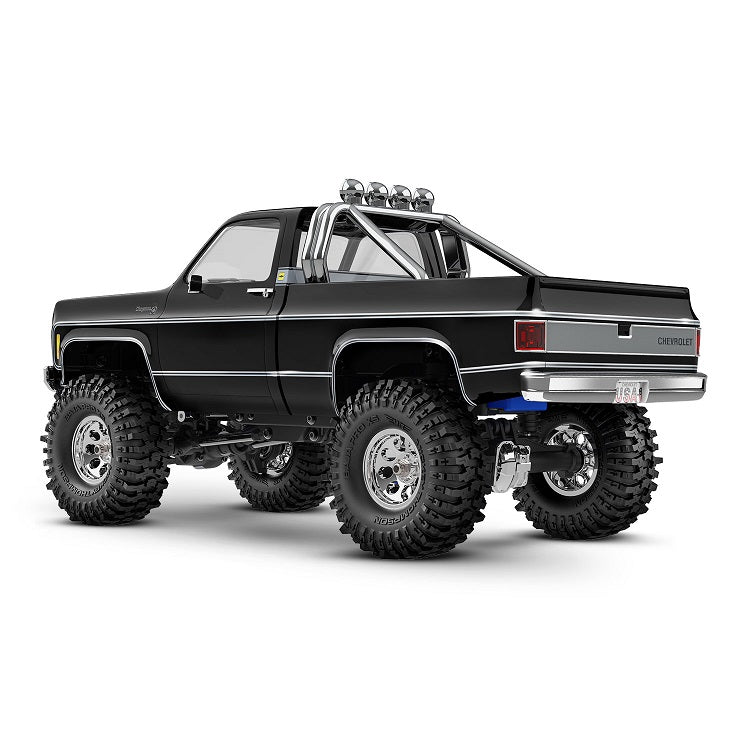

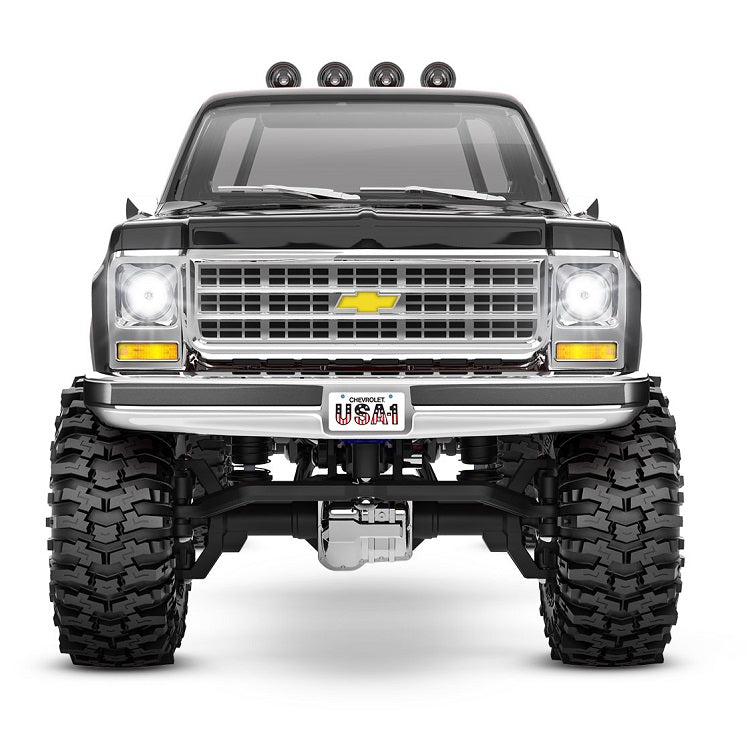

TRAXXAS TRX-4M 1:18 Chevrolet K10 High Trail Edition Black w/ TQ 2.4Ghz Radio, 87T Brushed Motor, Lipo Battery & Charger - 97064-1BLK

TRAXXAS TRX-4M 1:18 Chevrolet K10 High Trail Edition Black w/ TQ 2.4Ghz Radio, 87T Brushed Motor, Lipo Battery & Charger - 97064-1BLK

Small-scale adventure takes a big leap in performance with TRX-4M High Trail Edition trucks. Available with either a Chevrolet K10 or Ford F-150 body, High Trail trucks offer over 35% more center ground clearance than a standard TRX-4M. Both trucks ride on larger Mickey Thompson Baja Pro XS tires with an extended wheelbase for even more all-terrain capability. From indoor fun to outdoor adventure, TRX-4M High Trail Edition pickups deliver the quality and performance you expect from Traxxas.

LONG ARM LIFT KIT

The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.

NEW LARGER 2.4″ TIRES

Larger 2.4″ Mickey Thompson Baja Pro XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber gives extra “bite” for superior traction on the trail.

EXTENDED WHEELBASE

The High Trail Edition’s steel frame rails extend the wheelbase out to 162 mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

DETAILED CLIPLESS BODY

The High Trail’s clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.

SPECS

• Length - 269mm
• Front Track - 127mm
• Rear Track - 127mm
• Center Ground Clearance - 40mm
• Weight (with battery) - 468g
• Height - 127mm
• Wheelbase - 162mm
• Approach Angle - 62°
• Breakover Angle - 51.5°
• Departure Angle - 52°
• Shock Length - 51mm
• Hex Size - 7mm
• Diff Tye - Fully locked, 2:1 axle ratio
• Wheel Dimension - 25x13mm
• Tyres - 62x26mm
• Electronic Control Module (ECM) - ECM-2.5, All-in-one ESC, receiver and light control box
• Motor - Titan 180 87T brushed
• Servo - 2065T 2.3kg WP Hybrid Micro Servo
• Battery (Included) - 750mah 7.4V Lipo soft case with proprietary plug
• Charger (Included) - USB

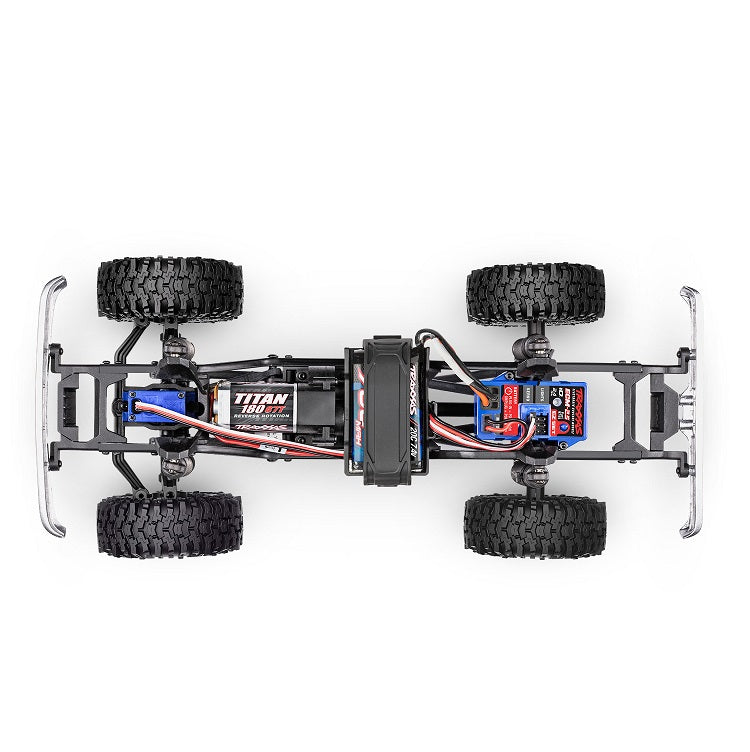

• Chassis Design - Steel ladder frame with nylon composite crossmembers
• Brake Type - Electronic 'Hill Hold'
• Drive System - Shaft driven 4WD
• Steering - Axle mounted servo
• Radio System - TQ 2.4Ghz 2-ch Transmitter
• Skill Level - 1
• Battery Tray - 51mmL x 31mmW

MOTOR SPECS

• Type - High torque brushed
• Size - 180size
• Weight - 33g
• Dimensions - 42mm overall length, 34mm can length, 21mm diameter
• Turns - 87T reverse rotation
• Max Voltage - 8.4V

ECM SPECS

• Input Voltage - 7.4V 2S lipo
• Weight - 26g
• BEC current - 1A
• Low Voltage Detection - 2-stage
• Transistor - MOFSET
• Motor Overload - 2-stage
• Driving Profiles - 3 available -

1. Sport Mode - 100% fwd, 100% brake, 100%rev
2. Trail Mode - 100%fwd, 100% brake, 100% rev, trail brake in neutral
3. Crawl Mode - 100% fwd, 100% instant rev, 100% brake in neutral

WHATS IN THE BOX

Traxxas TRX-4M High Trail Black Ford F-150 truck with all electronics fitted

TQ 2.4Ghz transmitter

750mah 7.4V lipo battery

2A USB charger

Product Manual

Parts listing & exploded diagrams

Maintenance tools
