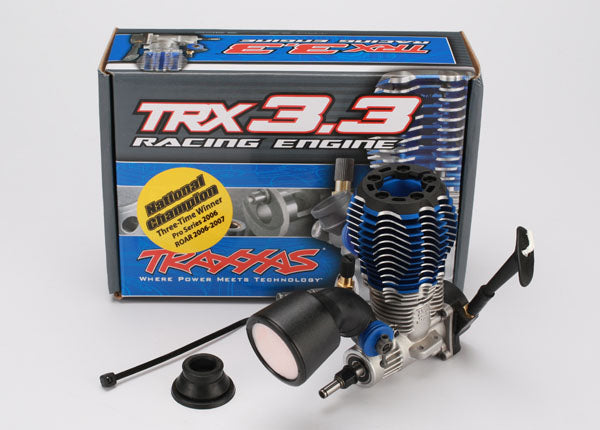

TRAXXAS TRX 3.3 Racing Engine w/ IPS Crankshaft & Pull Start - 5407
TRAXXAS TRX 3.3 Racing Engine w/ IPS Crankshaft & Pull Start - 5407
TRAXXAS TRX 3.3 Racing Engine w/ IPS Crankshaft & Pull Start - 5407
The powerful TRX 3.3 racing engine delivers unbeatable performance on or off the track. The engine features a precision composite slide carburetor, PowerTune cooling head, dyno-proven IPS (Integrated Pilot Shaft) crankshaft, and multi-port rear exhaust. Years of testing and proven performance deliver the easiest-to-tune, most dependable, most powerful Ready-To-Race engine available. It's competition-proven power with convenience and reliability for all-day driving
FEATURES |
Pull starter can be removed to install the EZ Start-2 system (5270R)
60% more peak power than the TRX2.5, with nearly 50% more power
under the curve for strong linear acceleration
Round rear exhaust with one-piece IPS crankshaft
Composite body slide valve carburetor with high-volume air filter
Blue anodized aluminum cooling head with molded head protector
INCLUDES |
Traxxas TRX 3.3 Racing Engine with Pull Starter and glow plug
One instruction manual (5300)
One service support guide and parts lis.
One set of engine decals
One engine break-in DVD
One small bottle of air filter oil
One air filter
REQUIREMENTS |
20% Nitro fuel mix
SPECIFICATIONS |
Displacement: .20 cu in (3.3cc)
Practical RPM: N/A
Output: N/A
Weight: 10.9oz (305g)
Distance between mounting holes same side: 0.39" (10mm)
Distance between mounting holes opposite side: 1.2" (32mm)
Distance from center of engine to front bearing: 1.2" (32mm)
Distance/bottom of mounting flanges/top of cylinder head: 3.5" (88mm)
Width of mounting flanges: 44mm
COMMENTS |
Other versions of the TRX 3.3 engine include;
#5404 Single Shaft (IPS) without Starter (requires bump box) 5404
#5406 Multi-Shaft without Starter, (requires bump box) 5406
#5409 Multi-Shaft w/Pull Start, 5409
