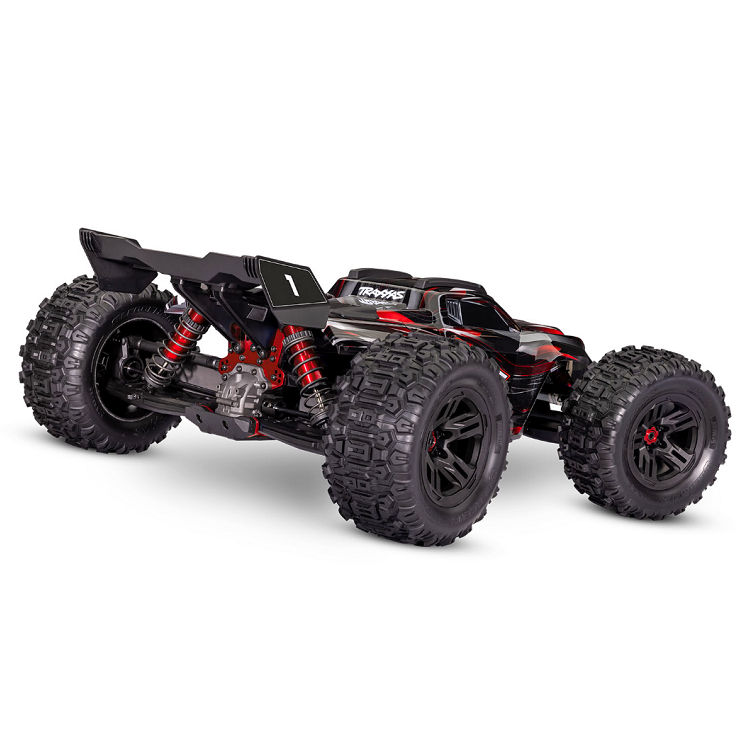

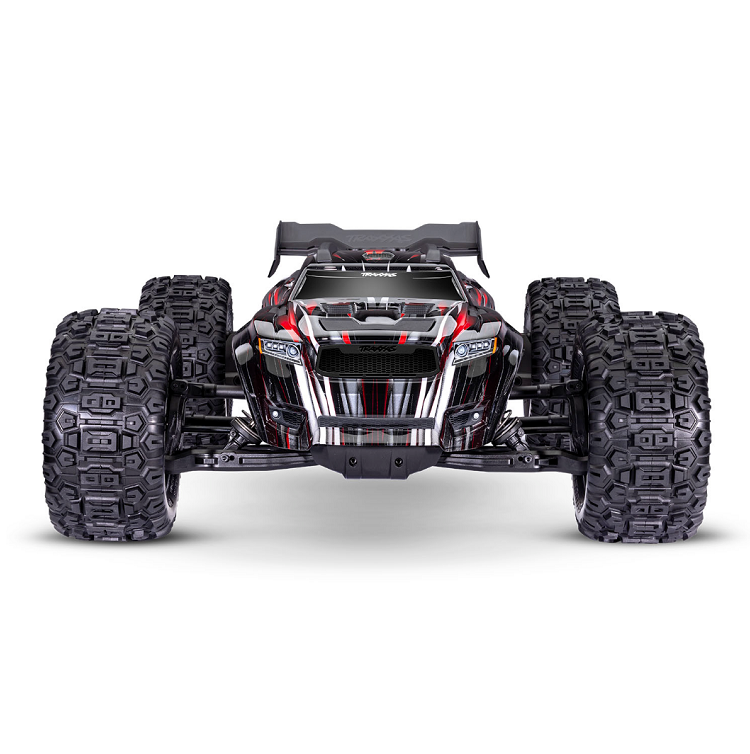

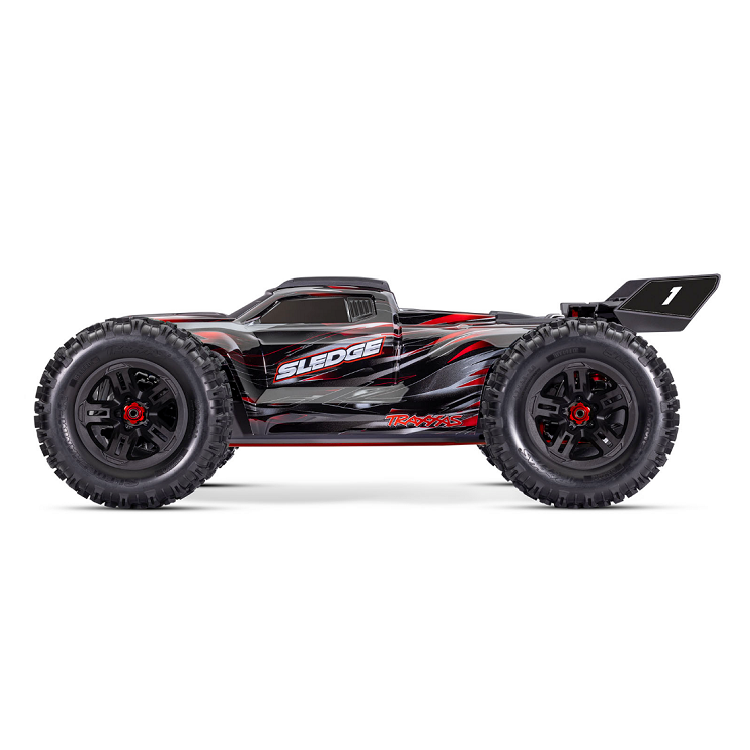

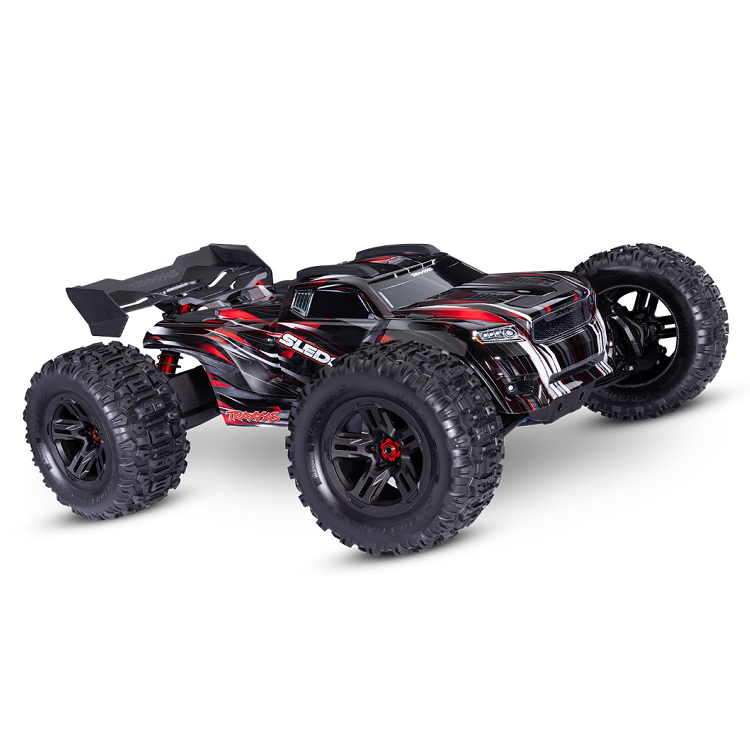

TRAXXAS SLEDGE 1:8 6S Belted Red Monster Truck w/ VXL-6s ESC & TQi 2.4GHz Radio - 95096-4RED

TRAXXAS SLEDGE 1:8 6S Belted Red Monster Truck w/ VXL-6s ESC & TQi 2.4GHz Radio - 95096-4RED

Engineered. Tested. Built to a higher standard. Sledge is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust. New belted Sledgehammer tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing high-speed precision and control.

Sledge delivers a powerful and fulfilling Traxxas experience. This means class-leading power, ultimate quality, and durability that is engineered to be second to none.

Engineered for 6s Power

Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

Superior Chassis Strength

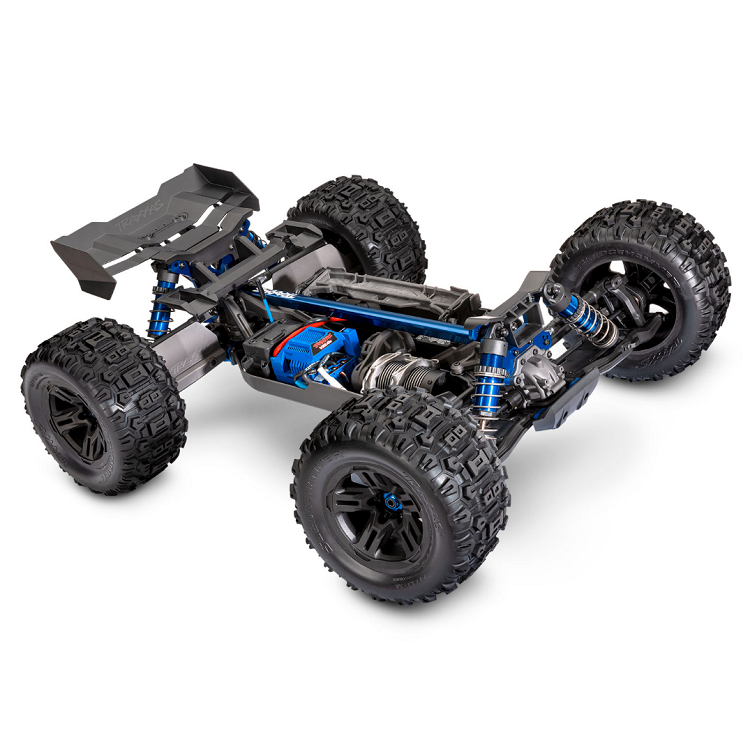

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar. Built on a solid foundation, Sledge is strongest where it matters most.

VXL-6s Power System

The Velineon VXL-6s features new hardware and new tuning specifically for the 2000 Kv motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

Motor Specs (#3483):

• Type: 2000Kv sensorless brushless
• Weight: 406g
• Length: 76mm
• Diameter: 42mm
• Connector Type: Traxxas 6.5 mm bullet connectors

ESC Specs (3485T):

• Input Voltage (cells): 4s–6s LiPo (max: 22.2volts)
• Case Size: 58mm x 72mm x 46mm
• Weight: 207g
• BEC Voltage: 6.0 volts
• BEC Current Continuous: 10 amps
• BEC Current Peak: 20 amps
• Reverse Delay: Yes, with lockout
• Ports: RX input, auxiliary fan, Traxxas accessory port

Monster Servo

Sledge is equipped with a high-performance metal gear servo that packs a massive 25kg/cm of torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

Servo Specs (#2275):

• Motor Type: Brushed
• Operating Voltage: 6.0V or 7.4V
• Torque: 25kg/cm
• Speed: 0.25 sec/60° @6V or 0.16 sec/60° @7.4V
• Weight: 67 g
• Gears: Metal
• Output Spline: 25T
• Case: Plastic top/bottom, anodized aluminum center
• Controller: Digital

Belted Sledgehammer Tyres

Sledge’s belted Sledgehammer tyres deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tyre’s shape for a larger contact patch, more grip, and responsive handling at any speed.

Clipless Body

Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.

DETAILS

GT-Maxx Shocks

Large bore GT-Maxx aluminium shocks mount to the towers with 4mm screws for extra strength. X-ring seals glide on large diameter shafts and the spring retainers are secured with screws to stay in place.

High Downforce Rear Wing

Sledges high downforce rear wing puts the airstream to work keeping sledge securely grounded and comes with moulded-in weat pads to protect the wing from ground scraping wheelies.

High Tech Suspension Arms

Formed from Traxxas toughest composite material, heavy duty suspension arms use high grade steel pins that press into the arms for tighter tolerances and less wiggling.

Heavy Duty Chassis Braces

Sledges heavy duty front and rear chassis braces combine with the aluminium chassis and rigid T-bar to create a dynamically strong triangular structure for maximum twist resistance.

Aluminium T-Bar

The unique shaps of Sledges T-Bar brace delivers cross sectional stiffness that no round tube can match. The T-Bar also keys perfectly into the bulkheads so they can absorb impact forces and not the attachment screws

High Strength Aluminium Chassis Plate

Sledges chassis uses flanged edges from bulkhead to bulkhead to eliminate weak points and additional strengthening ribs add extra rigidity in high stress locations. Composite side guards fit tightly to the sides of the chassis for a seamless look.

Rigid Battery Tray

Sleges roomy battery tray accepts a wide varity of 4S and 6S Lipo battery configurations. No clips or straps required.

Aluminium Stand Alone Motor Cradle

Sledge secures its 2000kv brushless motor in place with a wrap around aluminium cradle to eliminate all flex points. Built in bosses make it easy to attach the accessory cooling fan (#3476).

Belted Sledgehammer Tyres

The Sledgehammers thick tread blocks bite into rough terrain for outstanding all-surface grip. Tried and true Traxxas 3.8in beadlock wheels keep the monster tyres locked in place with a vise like grip. Lightweight belting maintains the tyre shape for a larger contact patch, more grip, responsive handling and minimal sidewall ballooning at speed.

6061-T6 Aluminium Shock Towers

Sledges shock towers are cut from 5mm thick 6061-T6 aluminium and tire directly into the center brace for bulletproof strength and rigidity.

6061-T6 Aluminium Hinge Pin Retainers

Heavy duty 6061-T6 aluminium hinge pin retainers hold the hardened steel hinge pins firmly inplace. This allows for higher tolerance than conventional sliding pins and less wiggle in the suspension.

Extreme-Duty Composite Camber and Toe Links

Sledges energy absorbing one piece links return to shpae if flexed and won't pull apart or bend in a crash. They're already pre-set for track worthy handling with optimal camber and toe settings.

Rugged C-Hubs with Double Shear Connections

Sledges rugged C-hub design combines with superior durability and impact resistance with precise steering alignment. Double shear connections keep the toe links securely fastened even during hard hits.

Steel Center Driveshafts

Super solid steel driveshafts deliver power from the torque biasing center driveline to the differentials. Rubber boots on the joints seal in the grease and keep dirt out.

Sealed Bearings

Traxxas has equipped Sledge with oversize rubber sealed bearings throughout the drivetrain to ensure smooth running and lasting precision and performance.

Torque Biasing Center Drive

Traditional center diffs can't handle 6S power. Sledges torque biasing center drive is filled with thick silicone fluid to distribute power evenly for full 6S thrust with every launch and corner exit.

Steel Outer Driveshafts

Solid steel driveshafts transfer Sledges massive 6S power from all the diffs to the wheels via heavy duty dogbones and constant velocity joints in front so you can be as heavy on the throttle and you want.

Steel Gear Differentials

Sledge uses true 6S differentials to handle its fercious power. Oversized coarse pitch steel gears are 20% larger and 75% thicker than traditional 1:8 scale components for lasting performance.

Other Features:

Fully Waterproof - All Traxxas trucks are fully waterproof (NOT submersible), true all-weather vehicles.

TQi Radio System - Been around for a while now, factory standard in all Traxxas brushless trucks for long range, glitch free performance with a fast frame rate for minimal lag.

Traxxas Stability Management - Works between radio and receiver, in the background, to control oversteer, avoid spinouts and keep the focus on driving. Can be set manually on the multifunction knob for as much or as little assist as you require.

Easy Battery Access -  One battery holder, one snap-lock battery retainer and one or 2 batteries as you want, no clips or straps to make it messy.

Clipless Body Mount - Release 2 tabs and you can get the body shell off in seconds, the frame reinforces the body shell for protection in crashes and rollovers.

SPECS

Length (including wing): 604mm
Front Track: 459mm
Rear Track: 459mm
Ground Clearance: 50mm
Weight (no battery): 5.77kgs
Height (overall): 214mm
Wheelbase: 384mm
Shock Length (front): 128mm
Shock Length (rear): 144mm
Tire Diameter:    6.7 x 3.3in (170mm x 84mm)
Wheel Diameter: 3.8in / 97mm
Speed Control: Velineon VXL-6s (3485) (22.2V MAX)
Motor (electric): Velineon 2000 Kv Brushless
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0 (1mmP)
Chassis Structure/Material: 3.2 mm aluminum plate
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank w/metal servo arm
Wheels & Tires: 3.8″ wheels, pre-glued belted Sledgehammer Tyres & foam inserts; 6.7x3.8
Radio System: 2-Channel, TQi 2.4 GHz Transmitter with TSM (6533) receiver
Servo: 2275 25kg/cm Waterproof, metal-gear
Top Speed: 70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
Skill Level: 4

Battery Tray:    Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm*
Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm*
Required Batteries:    4 “AA” (transmitter), Vehicle (see battery finder)

What You Need:

• 2x 2S 7.4V / 2x 3S 11.1V Lipo batteries
  • OR 1x 14.8V / 1x 22.2V Lipo Batteries and a Traxxas dead plug
• Suitable battery charger
• 4x AA alkaline batteries for the radio
