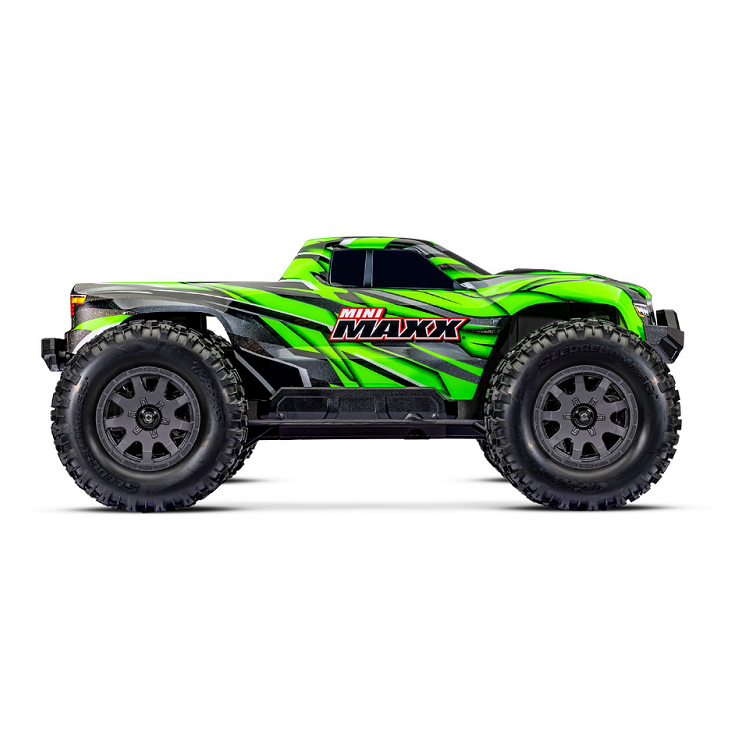

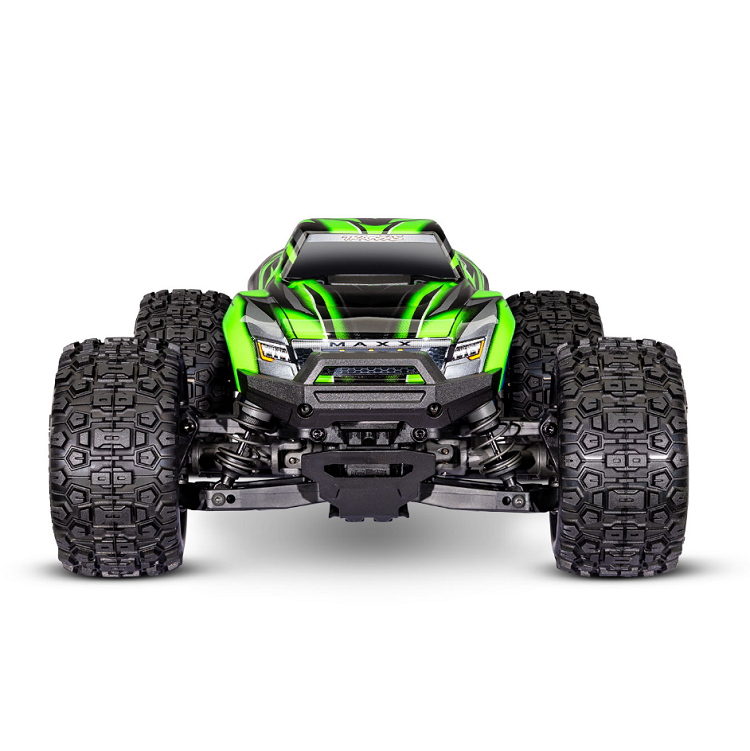

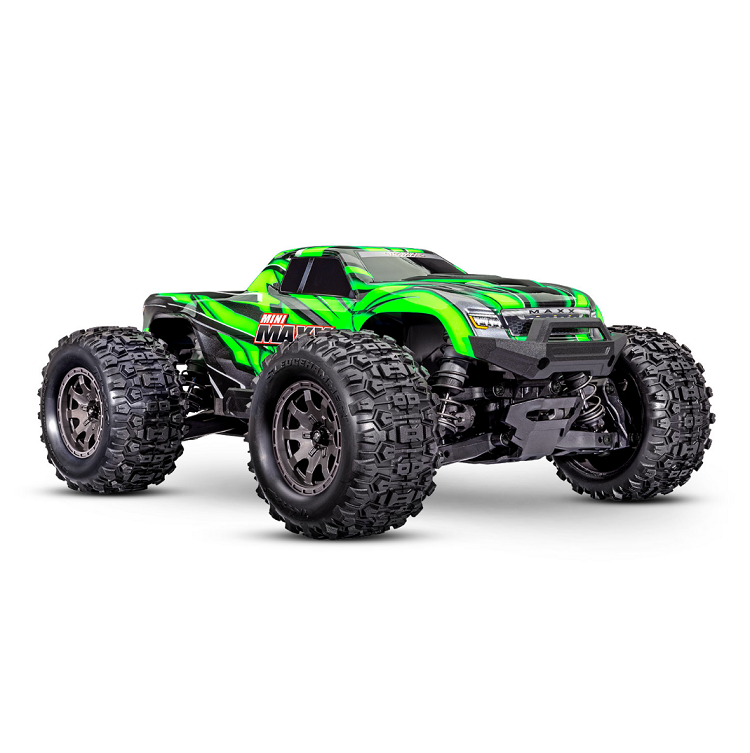

TRAXXAS MINI MAXX Green BL-2S w/ 2.4Ghz Radio, Lipo Battery & Charger - 107154-1GRN

TRAXXAS MINI MAXX Green BL-2S w/ 2.4Ghz Radio, Lipo Battery & Charger - 107154-1GRN

Overbuilt and over-the-top, the all-new Mini Maxx captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx performance. Mini Maxx is the perfect, take-anywhere size, delivering 50+km/h brushless speed and legendary Maxx toughness that slides easily into a backpack.

Maxx Performance

Mini Maxx does what the others can’t, in a fast, fun, and compact form that’s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It’s a whole new way to experience Maxx-level fun in a powerful machine that continues the Maxx legacy for speed and absolute toughness.

BL-2S Power System

Mini Maxx carries on the tradition of wheel standing power with the 1:10 scale BL-2S 3300kv Sensorless Brushless Power on board. Lightning quick acceleration and 50+km/h speed are at your fingertips for all day, non stop fun. The BL-2S ESC has low voltage detection built in and turned on for the supplied 7.4V lipo battery, turn off LVD and you could run an 8.4V Nimh battery pack. The BL-2S ESC also has training mode available for the younger crowd.

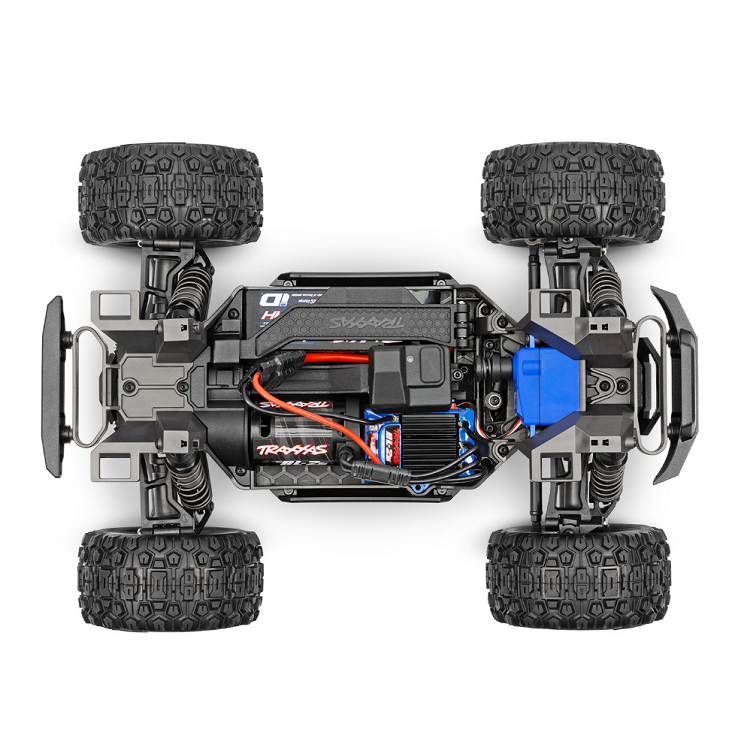

1/10 Scale 4X4 Driveline

A shaft driven 4WD system is rugged simplicity at its finest, delivering solid power and unstoppable traction to all four corners. With driveshafts and diffs originally designed for Traxxas's toughest 1:10 scale trucks, there is nothing that Mini Maxx can't handle. For additional tuning performance add the optional center diff (#10760).

Maxx Chassis Technology

Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength, and Mini Maxx packs it all up in a supremely compact design.

Clipless Body

Mini Maxx’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.

Long-Travel Suspension

1/10 scale Ultra Shocks and a long-travel independent suspension deliver WideMaxx handling and performance in a compact package. Mini Maxx’s beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.

Includes Lipo Battery and Charger

Traxxas have included a 3500mah 7.4V Lipo battery with the truck for best possible performance and a 2A USB-C balance charger to complete the ready-to-run pack.

Modular Design

Traxxas have perfected the art of modular, easy to dis-assemble design. Remove a few screws and Mini Maxx comes apart in 3 chunks for easy cleaning, maintenance and repair.

Standard 2056 Steering Servo

Traxxas' long time, all purpose #2056 servo comes into use again in Mini Maxx. With 5.76kg of torque and full waterproof sealing #2056 provides a crisp and reliable steering response.

Sledgehammer 4in Tyres

With so much power on tap, Traxxas developed a new version of the popular Sledgehammer tyres to fit the Mini Maxx and handle the powerful grip and ground clearance to overcome all obstacles. Sledgehammers have multiple layers of biting edges for sure footed traction and the open block design clears away mud and debris, whilst the heavy duty rubber compound is made to resist tearing.

Traxxas TQ Radio System

Traxxas TQ radio system has been around for a long time. It provides long range and short reaction time between radio and receiver, for a large range of Traxxas trucks. Comfortable hand-feel, glitch free performance and fast frame rate, who could ask a better radio.

Waterproof Electrics

Traxxas make their cars as waterproof as possible, with full waterproof sealing on their ESCs, servos and receiver boxes. Waterproof means rain, snow and puddles are no obstacle to RC bashing fun. (Traxxas cars are NOT submersible)

Need Lights?

Install Traxxas optional Mini Maxx Light Kit (#10795). The Light Kit includes new front and rear bumpers with LED lights and a new Roof Skid Plate with white LED lights in the front and red in the rear. A regulated 3V power supply provides consistent, flicker free performance from beginning to end.

Other Features

• Chassis Nerf Bars cradle the lower edges of the body shell and are designed to protect the edge of the chassis and the lower edge of the bodyshell.
• Moulded Bodyshell Reinforcements are neatly integrated into the body shell for a smooth and seamless look whilst protecting the bodyshell from impact damage.
• Rugged Bumpers, extra meaty to help protect the chassis and diffs from crash damage in the front and rear.
• Ultra Shocks have been on some of Traxxas premium 1:10 scale trucks and have been around a long time. Tried and true performance hydraulic dampening.
• Fixed Gear Mesh System takes the fiddly guesswork out of correctly meshing your spur and motor pinion gears. Motor plates have multiple preset gearing positions making changing gearing extra easy.
• Deep Wall Battery Compartment with a hinged, double sided, latchable battery strap protect your Lipo batteries even in the worst crashes.
• 3-Channel Receiver with Fail Safe Security built in, will stop Mini Maxx from driving away at top speed in the event of battery failure in the radio. The receiver returns the throttle to neutral and holds the last steering position.
• Dual Steering Bellcrank Assembly with Servo saver provides zero bump steer geometry, smooth turning action and equal delivery of steering power to both front wheels whilst a heavy duty, cam style servo saver guarantees protection for the servo from impact damage.
• Interlocking Skid Plates protect the underchassis on Mini Maxx from environmental hazards  and create a smooth, snag free undertray.
• Heavy Duty Suspension Components are engineered for strength and durability, minimising wear and tear damage from dramatic driving and terrain hazards.
• Rubber Sealed Bearings throughout; diffs, bellcrank and hubs, for minimal loss of power through friction.
• 32 Pitch Gearing for extra toughness in the driveline. 32P is much less likely to strip in a crash and provides a solid gear mesh.
• Metal Differentials, extra tough to handle all that power without stripping. Crown gear, pinion, spider and sun gears, all steel.

Specs:

Length: 345mm
Front Track: 253mm
Rear Track: 253mm
Ground Clearance: 27mm
Weight: 1.64kg
Height: 137mm
Wheelbase: 220mm
Shock Length: 88mm
Tire Diameter: 100mm
Wheel Diameter:    2.1″ (53mm) outer, 2.6″ (66mm) inner
Speed Control: BL-2s brushless ESC
Motor (electric): BL-2s 3300kv sensorless brushless
Transmission: Direct-drive
Overall Drive Ratio: 9.20:1
Differential Type: Planetary, steel gear
Gear Pitch: 32P
Chassis Structure/Material: Composite modular tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank with cam style servo saver
Wheels & Tires: Dual-profile wheels with pre-glued Sledgehammer tyres
Radio System: TQ 2.4GHz 2-channel with #6519 3 channel receiver
Servo: Waterproof high-torque #2056
Top Speed: 50+km/h
Skill Level: 1
Battery Tray: 113mm L x 41mm W x 22mm H
Required Batteries: 4 AA alkaline batteries for the transmitter

Whats In The Box:

• Traxxas Mini Maxx truck in Green, Orange, Blue or Black colour scheme
• Traxxas TQ 2.4Ghz radio system
• 3500kv 7.4V Lipo Battery
• 2A USB-C Charger
• Traxxas glossy brochure
• Booklet with spare parts listing and exploded diagrams
• Allan key and wheel nut spanner set
