TRAXXAS Ford F-150 Raptor 2WD BL-2S EHD Fox Sports Short Course Truck w/ TQ 2.4Ghz Radio and 3300kv Brushless Driveline - 58394-4FOX

• BL-2s Waterproof Electronic Speed Control
  • Heat sink accepts accessory cooling fan (3340)
  • Three Programmable Drive Profiles
    • Sport Mode - Forward / Brake / Reverse
    • Race Mode - Forward / Brake
    • Training Mode - 50% Forward / Brake / 50% Reverse (patented)
  • Traxxas EZ-Set one-button setup
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
  • LiPo battery packs: 2 cells (7.4 volts)

• 3300 Kv Brushless Motor
  • Integrated cooling fan
  • Low-maintenance design
  • Efficient ball bearings
  • 3300 Kv

Extreme Heavy Duty Components

Extreme Heavy Duty components come factory-installed on Raptor for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for unbeatable strength. From HD suspension arms to upgraded driveshafts, Raptor sets a new standard for durability for your off-road adventures.

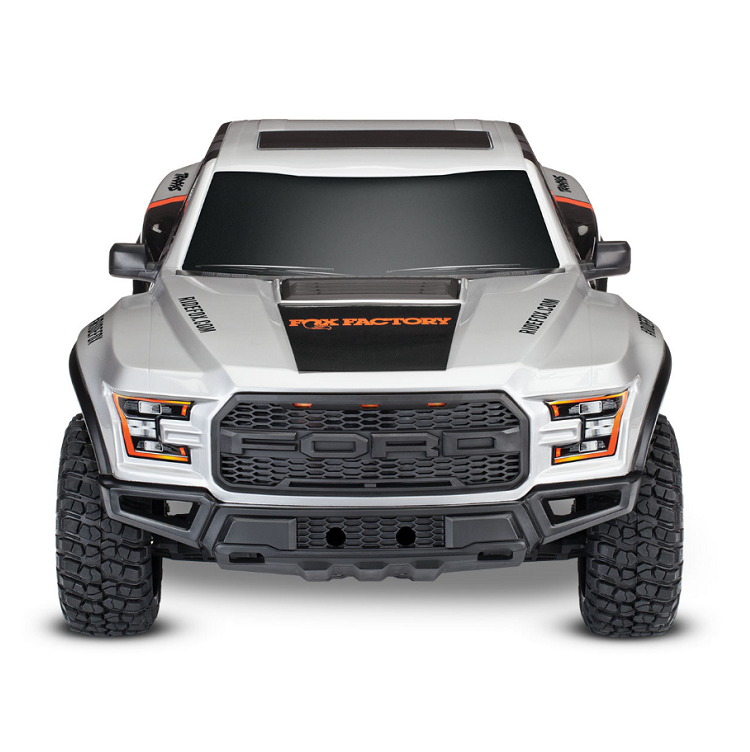

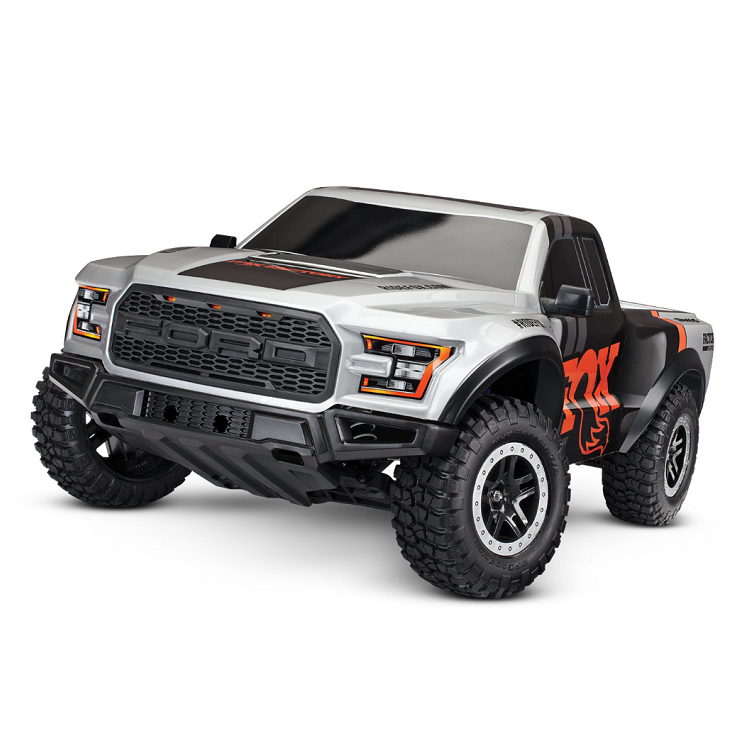

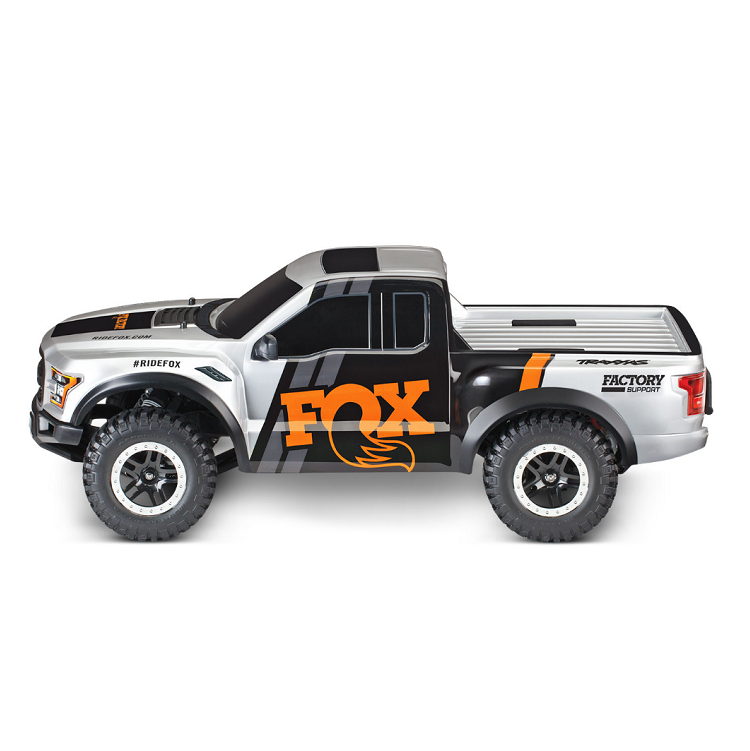

Clipless Ford F-150 Raptor Body

Raptor’s sleek clipless body comes fully detailed with an injection molded grille, front bumper, and body accessories to capture the full depth and detail of Ford’s original design. Raptor’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.

Integrated Chassis Nerf Bars - Tough integrated chassis nerf bars offer side body support and impact protection for both body shell and chassis, just in case you're a sideways driver!

Extreme Heavy Duty Driveshafts - Raptor's extreme heavy duty driveshafts are beefed up in critical areas for outrageous power transfer and handling. The large diameter telescoping half shafts offer excellent articulation and suspension travel as well as holding up under the torque supplied by the BL-2S driveline.

Oil Filled Ultra Shocks - Raptor comes with a full set of oil filled ultra-shocks. These are engineered for smooth, leak proof running and easy maintenance. They come with progressive white powder coated springs and can be tuned using different weight shock oils, different spring rates and alternate pistons.

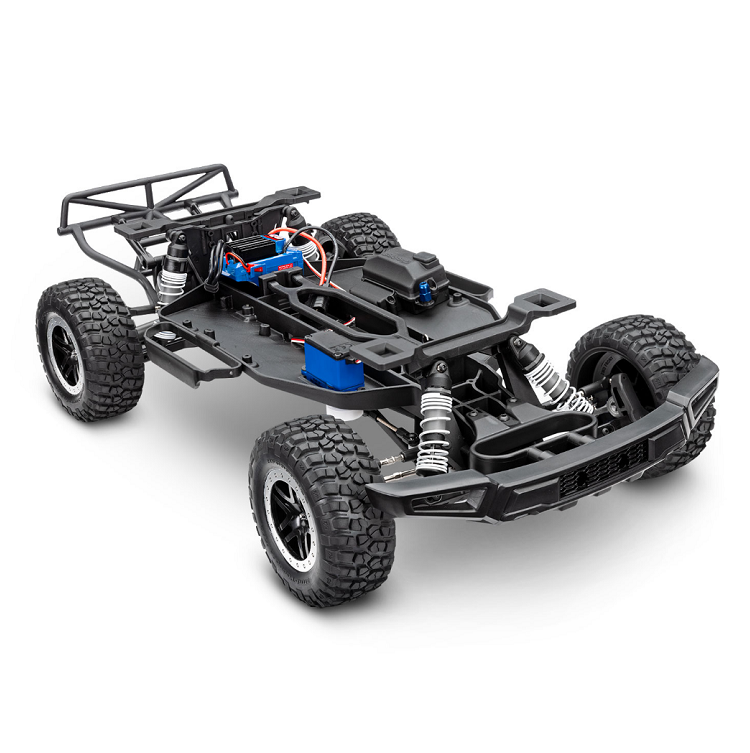

Long Wheelbase Chassis - Raptors long 323mm wheelbase chassis increases high speed stability with 3.5in (87mm) of center ground clearance to avoid high centering. The chassis includes drain hole, a channel for servo wires and bosses for mounting the optional Velineon VXL-3S system.

Digital Steering Servo - Raptor comes with a 9kg digital, high speed steering servo for a crisp powerful steering response.

Replica All Terrain Tyres - Realistic looks, realistic performance. Raptors replica BFGoodrich Mud Terrain T/A tyres have excellent grip in the dirt or the wet and just the right amount of slide on pavement. The tyres come mounted on black 2.2/3.0in dual profile SCT wheels with a satin chrome beadlock affect.

Traxxas High Current Plugs - All Traxxas cars come with Traxxas patented plugs, easy to use with a large grip area and impossible to plug in backwards.

Adjustable Battery Hold Down - The battery strap can be flipped over to securely hold thinner and thicker battery packs but there is a tall battery hold down set (sold separately) available for extra thick batteries.

Hex Hardware - Raptor uses all black powder coated internal hex hardware for secure, positive fixing, rust resistance and ease of use. Looks good too!

Waterproof Receiver Box - The most water sensitive and vulnerable component to Raptor electrics is the receiver. Raptor keeps it safe and dry in an o-ring sealed box with a water tight high density foam ingress for wires.

3Ch Receiver with Failsafe - In the event of signal loss due to an accidental transmitter switch off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last known steering position. Failsafe is built in and does not need to be activated.

TQ 2.4Ghz Transmitter - The TQ 2.4Ghz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radios advanced programming provides long range control with smooth, glitch free, performance and its ergonomic desogn is comfortable for all day driving.

Dual Steering Bellcrank with Servo Saver - Raptor's dual bellcrank design pivots smoothly even in the roughest of conditions. An integrated cam type servo saver protects the steering servo from crash impacts without sacrificing steering precision. And its all mounted on smooth, water resistant nylon bushes.

Adjustable Steel Turnbuckles - Factory fitted and adjusted, heavy duty steel turnbuckles allow for camber and toe tuning. The suspension is completely adjustable right out of the box to fine tune handling agility and high speed performance. Captured rod ends provide unmatched durability and they won't pop off.

Scale Front Bumper - Engineered to handle the abuse of bumper to bumper bashing, the integrated front bumper is designed to absorb brutal impacts whilst looking the part of an aggressive off-road ready truck.

Magnum 272R Metal Gear Transmission - The Magnum 272R metal gear transmission features all metal gear internals riding on ultra smooth sealed ball bearings. The sealed gearbox protects the transmission components from dirt, dust and rocks. The fortified Magnum 272R is built to handle even extreme Velineon VXL-3S power without futher costly upgrades.

Torque Control Slipper Clutch - The torque control slipper clutch uses special semi metallic friction pads and finned aluminium alloy pressure plates to dissipate heat and provide consistent traction control. Spur gears (transmission gears) can be easily removed and replaced without altering the slipper adjustment.

Steel Composite Planetary Differential - The composite planetary gear differential features a steel ring gear for long life and durability. It uses hardened steel internal gears for maximum strength during rigorous off road bashing. This type of differential requires virtually no maintenance and its efficient design put maximum tyre shredding torque to the wheels.

Rubber Sealed Bearings - Raptor comes with a full complement of rubber sealed bearings throughout to help keep out the dust and rust and keep it running smoothly.

Specs:

Length: 568mm
Front Track: 296mm
Rear Track: 296mm
Center Ground Clearance: 89mm
Weight (no battery): 2.16 kg
Height (overall): 214mm
Wheelbase: 335mm
Shock Length (front): 88mm - Long
Shock Length (rear): 101mm - XX-Long
Tires: Replica BFGoodrich Mud Terrain T/A Tires
Tire Diameter: 4.3″x1.7″ inches (109mm x 43mm)
Wheels (front/rear): Split-Spoke SCT wheels
Wheel Diameter: 2.2/3.0in dual profile SCT wheels
Speed Control: BL-2s ESC with Training Mode, LVD and Thermal cutoff
Motor (electric): BL-2s 3300 Kv sensorless brushless
Overall Drive Ratio: 12.58:1
Differential Type: Planetary
Gear Pitch: 48P
Chassis Structure/Material: Composite tub
Drive System: 2WD
Steering: Dual-bellcrank with integrated servo saver
Radio System: TQ 2.4 GHz (2-channel)
Servo: 9kg Waterproof digital 2075 servo
Skill Level: 1
Battery Compartment (L/W/H): 165mm x 50mm x 23/25 mm

Needed to Complete:

• 8.4V Nimh or 7.4V Lipo battery
• Suitable battery charger
• 4 AA alkaline batteries for the radio
