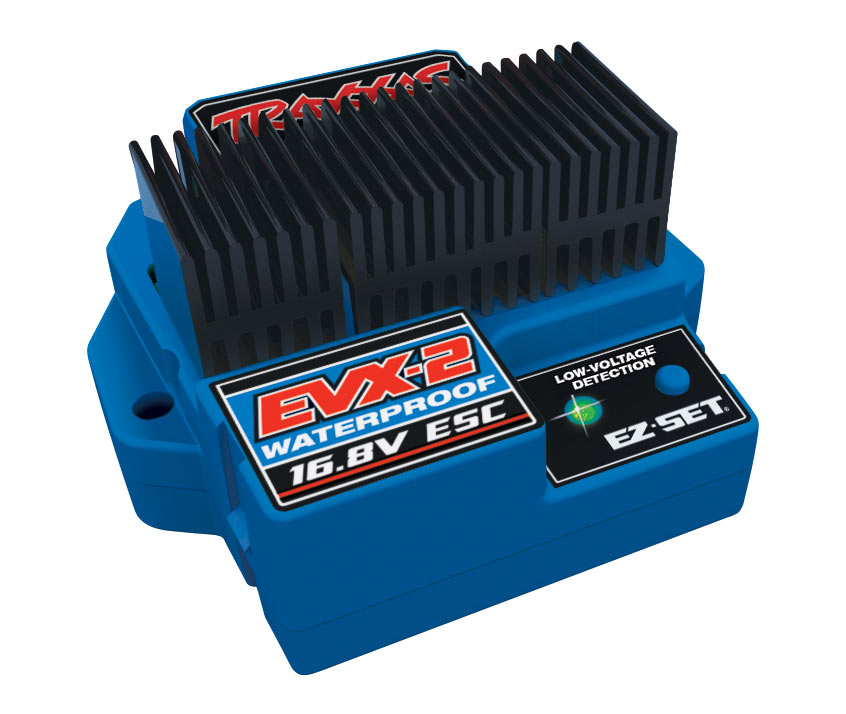

TRAXXAS EVX-2 Dual Motor & Battery ESC - 3019R

TRAXXAS EVX-2 Dual Motor & Battery ESC - 3019R

Regular price $369.95
Regular price Sale price $369.95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Contact us for more information

TRAXXAS EVX-2 Dual Motor & Battery ESC - 3019R

Only suitable for dual motor and dual battery applications.

The EVX-2 delivers an incredible 16+ volts, from two battery packs, making 16.8 volt, twin-motor setups more powerful than ever! Designed by Traxxas, the EVX-2 features a completely waterproof design, three drive profiles, thermal shutdown protection, and gold-plated patented Traxxas High-Current Connectors. The EVX-2 also includes patented Training Mode. This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. EVX-2 is equipped with two-stage low voltage detection (LVD) to allow LiPo battery use. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support.

The EVX-2 uses Traxxas' exclusive EZ-Set push-button set-up and a multi-colored LED making it a snap to adjust. Its microprocessor control has three built-in programming modes including: Sport Mode with forward, brakes, and reverse; Racing Mode with forward, brakes, and no reverse; and the patented Training Mode that limits forward and reverse power by 50% while keeping brakes at full power. Built-in thermal shutdown protection adds an extra level of safety. Sophisticated, high-frequency operation and low internal resistance provide longer run times, more speed, and more fun!

The exclusive patented Training Mode limits full throttle output to 50% making it easier for new or young drivers to develop their control skills. With the high-frequency efficiency of the EVX-2, run time is also greatly increased. When they're ready, simply change profiles to unleash full-throttle action.

EVX-2 Waterproof ESC Features

  • Built-in two-stage low voltage detection (LVD)
    for lithium polymer (LiPo) batteries
  • 16.8 volts of power
  • Waterproof design
  • Microprocessor controlled
  • Traxxas High-Current Connectors
  • Three drive profiles
  • Patented Training Mode
  • EZ-Set push-button set-up
  • Thermal shutdown protection
EVX-2 LVD (WATERPROOF) SPECIFICATIONS
Input voltage: ­ 6-14 NiCad and NiMH cells (7.2 to 16.8 volts DC)
4-cell LiPo (14.8 volts DC)
Case size: ­ 2.27″ W x 2″ D x 1.05″ H
Weight: ­ 3.6 ounces
Motor limit (540 size): ­ 10 turns
Motor limit (550 size): ­ 12 turns
On resistance­ (@Trans)–FWD/REV: ­ 0.004 ohms / 0.004 ohms
Rated current–FWD/REV: ­ 180 amps / 180 amps
Braking current: ­ 360 amps
Continuous current (at 100°F amb.): ­ 30 amps
Reverse delay: ­ None
BEC voltage: ­ 6.0 volts DC
BEC current: ­ 2.5 amps
Power wire: ­ 14 gauge / 3″
Input harness wire: ­ 26 gauge / 9.5″
Motor wires: ­ 14 gauge / 4″
Transistor type: ­ MOSFET
PWM frequency: ­ 1700 Hz
Thermal protection: ­ Thermal shutdown
Profile selection: ­ Sport Mode:
100% fwd, 100% brakes, 100% rev.

Race Mode:
100% fwd, 100% brakes, no rev.

Training Mode*:
50% fwd, 100% brakes, 50% rev.
Single-button setup: ­ Yes, Traxxas EZ-Set
