TAMIYA Toyota Supra JZA80 BT-01 1:10 Kit NO ESC - 58733A

TAMIYA Toyota Supra JZA80 BT-01 1:10 Kit NO ESC - 58733A

The 2WD BT-01 is a NEW chassis that offers radio control hobbyists’ choices of FF/MR/FR drive system based upon the drive system of the actual car your body recreates. The body included in the first release depicts the fourth generation Toyota Supra (JZA80) which was announced as a Toyota flagship sports car in 1993. Its top grade RZ model employed a 3-liter inline-6 twin turbo engine capable of 280hp, 6-speed transmission, 4-wheel double wishbone suspension and ventilated disc brakes for front and rear. The muscular form and high-spec performance mesmerized fans all over the world and achieved success in motorsports races.

About the BT-01 Chassis:
The 2WD BT-01 chassis gives the choice of two types of wheelbases, and front-or rear-wheel drive system. Without removing the battery pack, motor, and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front-and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as the motor mount, final gears and suspension facilitate ese of assembly and effective maintenance.

Features:

• The 2WD BT-01 chassis gives a choice of two types of wheelbases (*), and front- or rear- wheel drive system.
• Without removing battery pack, motor, and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. (Six setups are available in total.)
• The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
• Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

• 1/10 scale R/C model assembly kit. Length: 457mm, width: 185mm, height: 135mm. Wheelbase: 257mm.

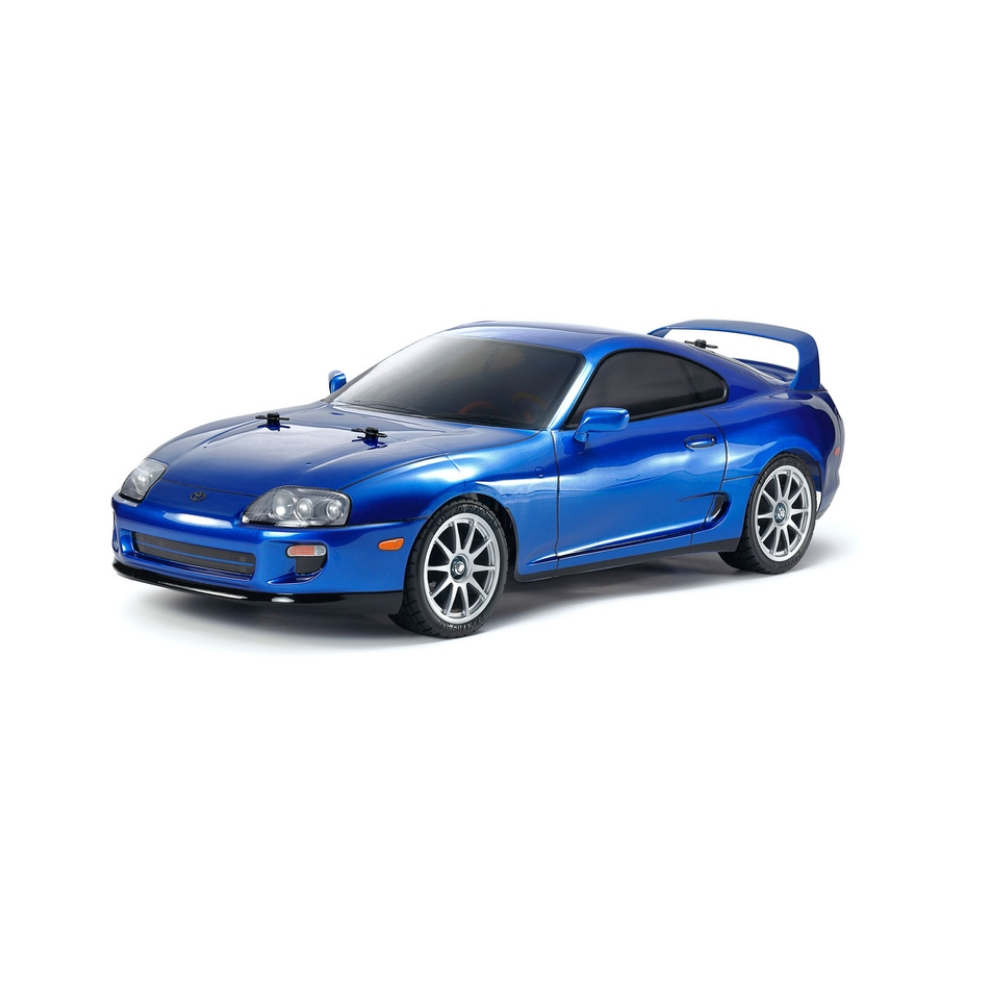

• The form of the Toyota Supra (JZA80) is realistically recreated in lightweight polycarbonate.
• 10-spoke one-piece wheels (silver color) are paired with racing radial tires.
• Separate molded plastic parts: mirrors, wing, light cases.
• Includes 540-brushed motor.

SPECIFICATIONS

• Adjustable Gear Ratio Yes
• Bearings Plastic bushing
• Body Material Polycarbonate
• Body Stickers Included
• Chassis Material ABS Plastic
• Chassis Type BT-01
• Construction Type Assembly Kit
• Differential Type Gear
• Drive Type 2WD
• Motor 540-brushed type
• Scale 1/10
• Shock Damper Friction type
•  Two wheel base options

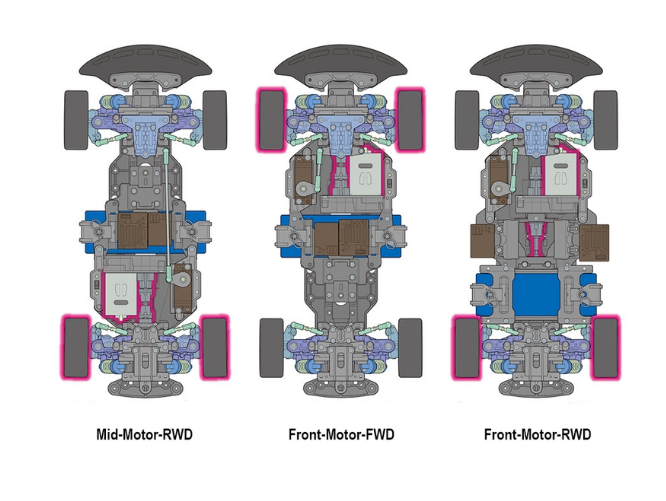

• Three motor layout configurations -MR (Mid-mount motor & rear wheel drive), FF (front mount motor & front wheel drive), FR (front mount motor & rear wheel drive)
• Suspension Fully Independent Double Wishbone
• Terrain Use On-Road

Need running gear?? Get our custom ready-to-run pack here:

REQUIRED FOR RUNNING SPEC:

• 2.4Ghz radio and receiver
• Brushed Motor ESC
• Steering servo
• 7.2V Nimh (recommended) or 7.4V Lipo battery
• Battery charger
• AA alkaline batteries for radio (if required)
• Tamiya PS paint
