TAMIYA Super Clod Buster Black Edition Kit 1:10 - 47432

TAMIYA Super Clod Buster Black Edition Kit 1:10 - 47432

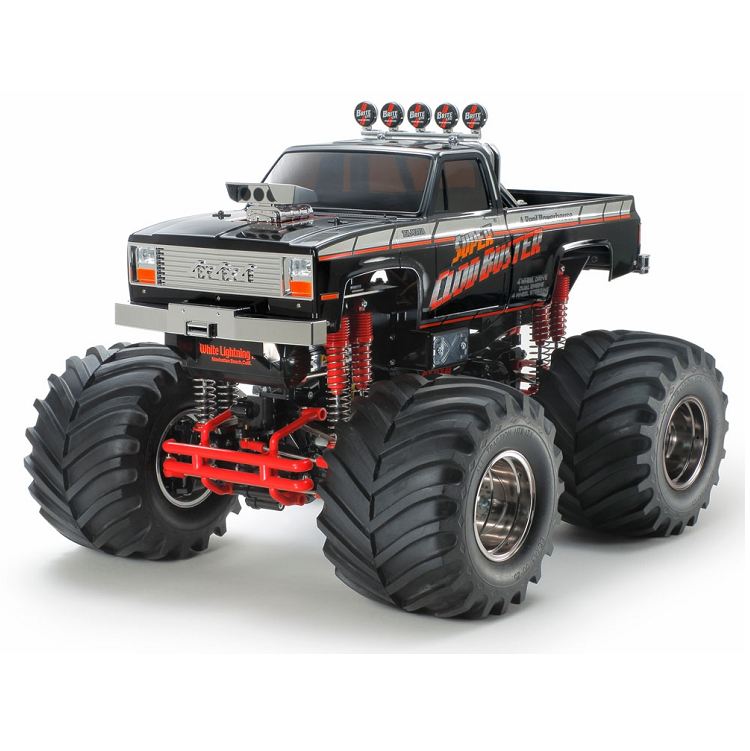

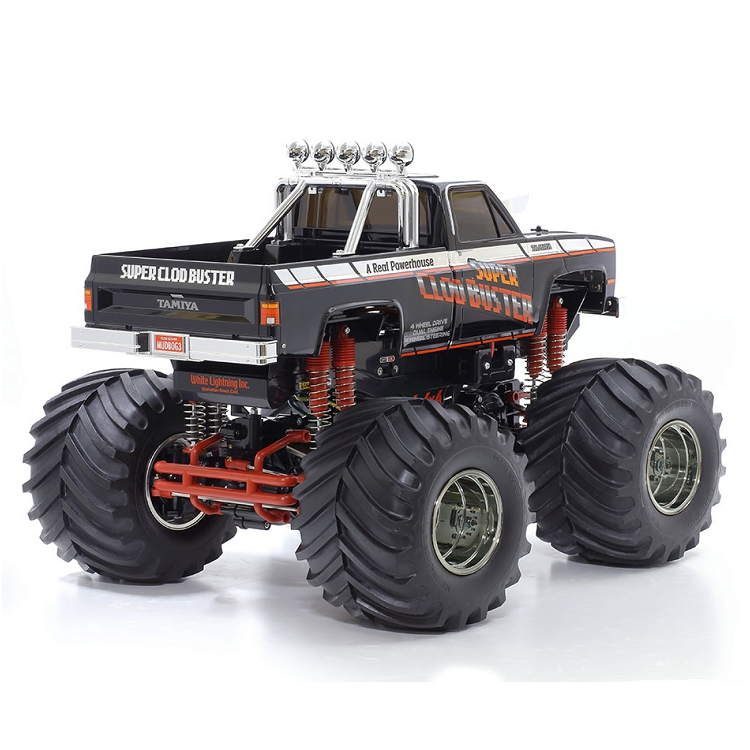

It’s back, and ready to obliterate unfriendly terrain just like before! This time, the Tamiya Super Clod Buster appears as a special Black Edition, with new colors for the body and components, a brand-new sticker design and more!

Two Motors and 4WS System
The Super Clod Buster is equipped with two motors and tightly sealed gearboxes that have been molded as one piece with axle housing. Minimum power loss and smooth cornering are obtained thanks to gear train transmission and differentials. The included Dual Motor ESC provides ample power to get your truck over obstacles. Furthermore, this monster truck is also equipped with a 4WS system for 4-wheel drive steering. This feature makes tight cornering with such a big machine easy!

• 1/10 scale R/C model assembly kit.
• Length: 480mm, width: 380mm, height: 340mm.
• The truck body is injection molded in black plastic, with detail and realism.
• Metal- plated parts are included to depict front grille, supercharger air intakes and roll bars.
• Red plastic bumper and damper components.

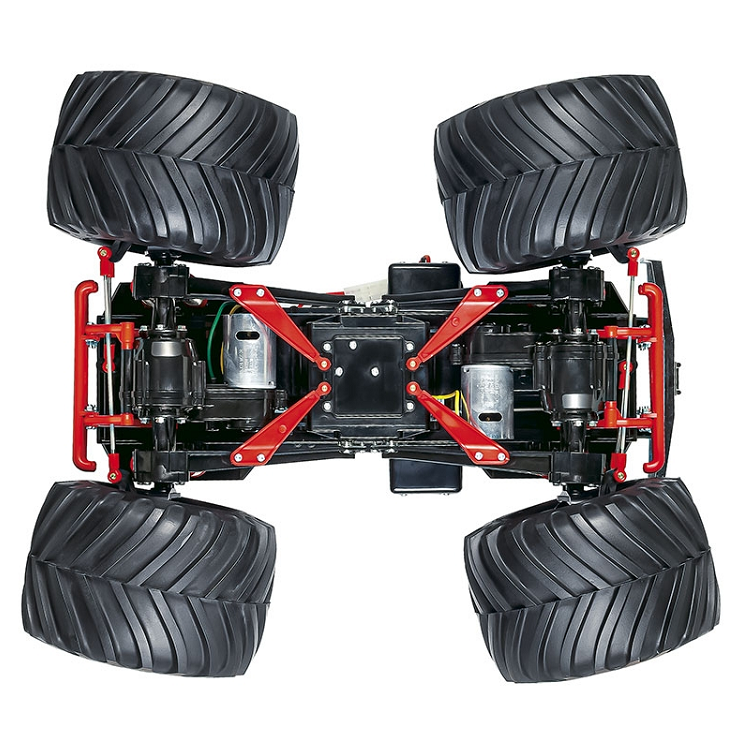

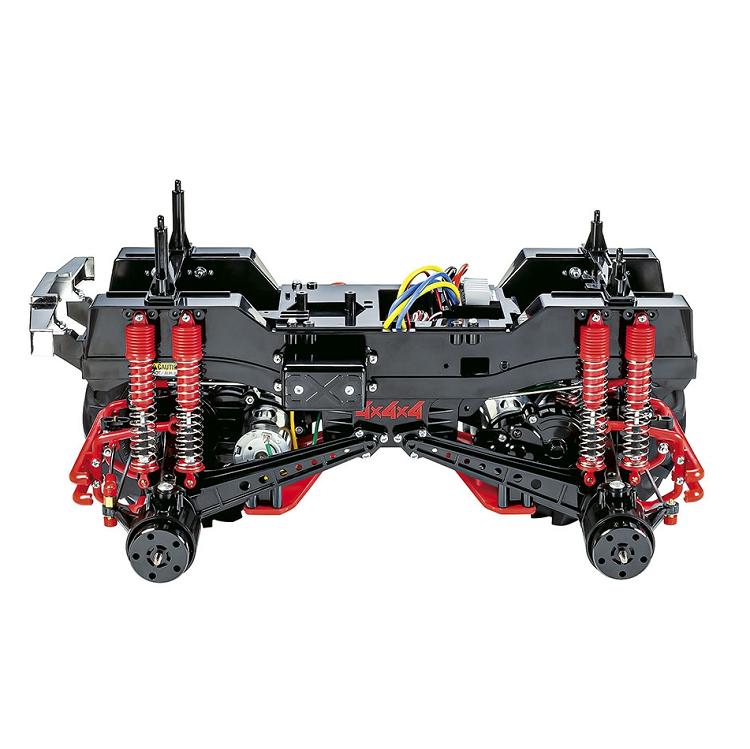

• The model is based around a bathtub chassis frame, endowed with rigid link suspension and two springs on each wheel that provide ground clearance of 55mm and a superb off-road drive.
• Four-wheel steering.
• Two Type 540 motors included.
• Included: Hobbywing Produced ESC (Tamiya Specification TEU-201 BK)
• New Sticker design.


TEU-201 BK (For Twin Motor) ESC

- Compact forward/reverse electronic speed controller for twin-motor R/C models such as Super Clod Buster.
- Large aluminum heat sink and cooling fan allow effective heat dissipation.
- Low voltage protection function limits potential for over discharging of battery pack.
- Compatible with Nimh (7.2V) and Lipo (7.4V max) battery packs.
- Features thermal cutoff.
- LED warnings indicate no-signal status and show protection function status.
- Built-in BEC (6V/4A) is compatible with digital servos.

- For use with surface receiver
- Control system: High-frequency 8Khz
- Max continuous current: (FET Spec): 80A
- Functions: Forward, reverse, and brake
- Output: Forward 100%, reverse 75%
- Power Supply voltage: 606V-7.2V
- Compatible motor: Sport Tuned Motor or brushed motor of 25 turns and above.
- Dimensions (including protruding sections): 47.0X36.5X26.5mm (39.0mm including cooling fan)
- Weight: 77.5g
- Features Tamiya battery connectors (which we do not recommend for Lipo battery packs).

SPECS

• Adjustable Gear Ratio: Fixed
• Bearings: Plastic bushing
• Body Material: ABS Plastic
• Body Stickers: Included
• Chassis Material: ABS Plastic
• Chassis Type: Monster Truck
• Construction Type: Assembly Kit
• Differential Type: Gear
• Drive Type: 4WD
• Electronic Speed Control (esc): Hobbywing Produced ESC (Tamiya Specification TEU-201 BK)
• Motor: 2x 540-brushed type
• Shock Damper Friction type
• Terrain Use Multi-Purpose

REQUIRED TO COMPLETE:

• 2 or 3 channel transmitter and receiver
• 1 steering servo (we recommend a strong servo as this is 4 wheel steer)
• 7.2V nimh or 7.4v lipo battery
• Battery charger
• AA alkaline batteries for the transmitter if required.
