TAMIYA ASTUTE (2022) TD2 Buggy Kit 1:10 - 58697

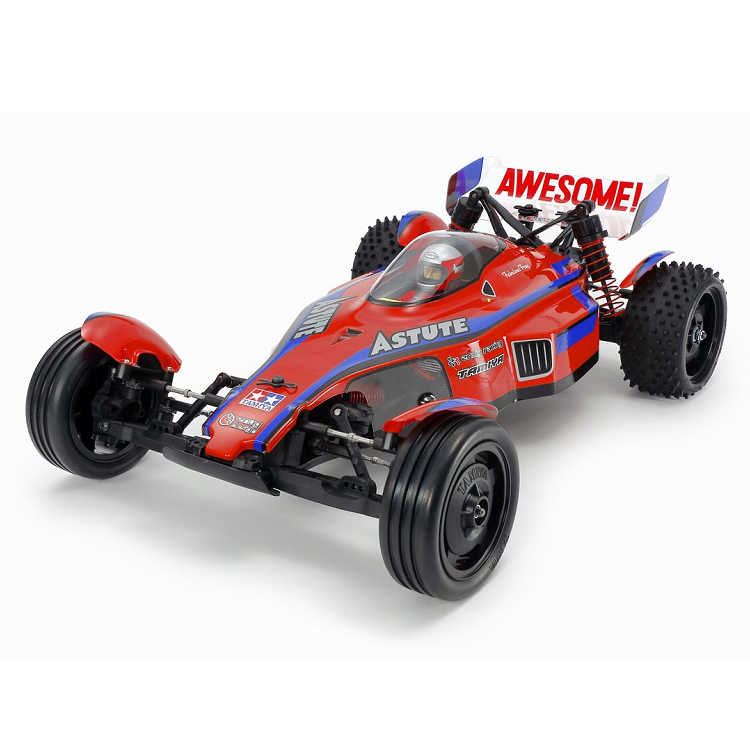

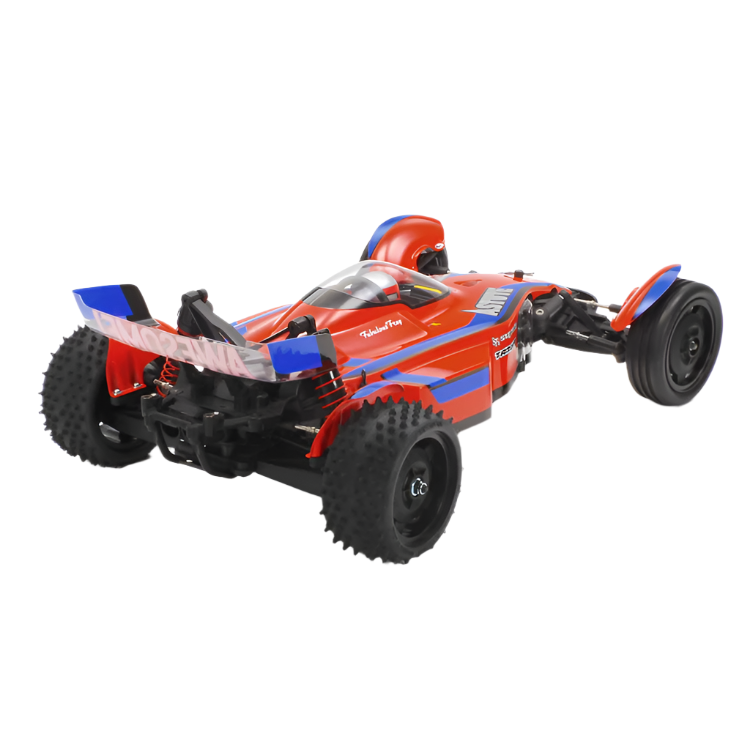

This 2WD R/C off-road assembly kit buggy inherits its name from the 1980s Tamiya R/C rear-wheel drive model "Astute." The low-profile, sleek body is designed by Kota Nezu of znug design. The model features a driver figure in the cockpit and individual front/rear small fenders. Two types (high/low) of wing stays are included to adjust downforce. Based on a monocoque frame chassis with midship motor and battery pack position toward the rear, the Astute 2022 utilizes front ribbed and rear square spike tires.

TD2 - Superbly Balanced RWD

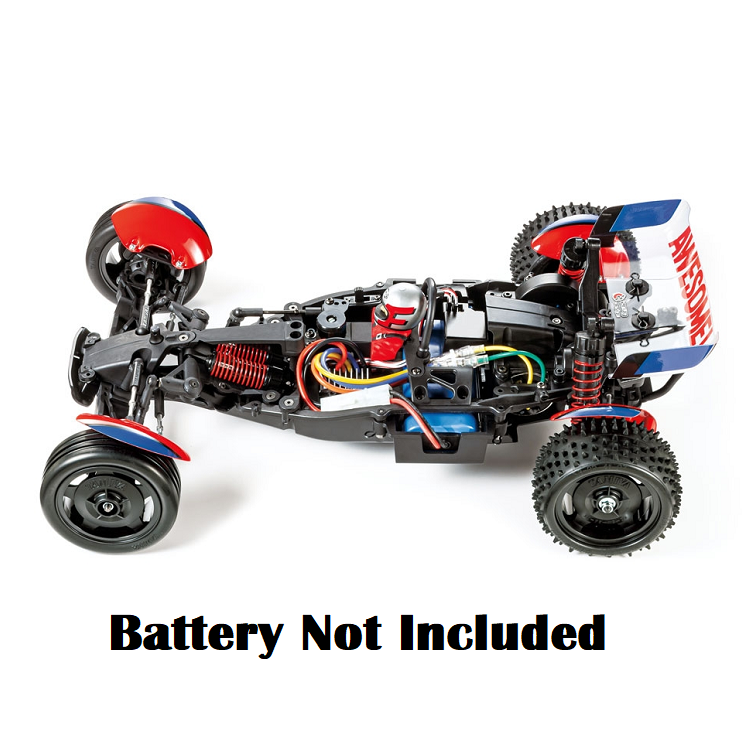

The TD2 is a rear-wheel drive buggy chassis which employs front inboard suspension for slim, low-profile form, and a monocoque frame with optimum R/C equipment layout. It features a midship transverse motor and transverse battery pack positioned to the rear. The sealed gearbox has a built-in ball differential to limit slip and 4-wheel independent double wishbone suspension utilizes CVA oil dampers. Turnbuckle shafts for use as upper arms facilitate camber angle adjustment. Front suspension has a skid angle of 25 degrees and angled dampers for smooth performance. Ribbed front and rear square spike tires facilitate stability and great grip. Front wheels are attached by hex hubs.

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

• Off-Road styled polycarbonate body
• Ribbed front tires and rear square spike tires provide incredible stability and great grip
• 4-wheel double wishbone suspension system uses CVA oil dampers for supple performance
• Choose between high and low type wing stays to adjust the downforce set up of the buggy
• Driver figure included for extra realism

Specifications:

• Length: 387mm, width: 246mm, height: 125mm (with low wing stays employed)
• Wheelbase: 284mm
• Tread: 215mm (front), 205mm (rear)
• Plastic bathtub frame
• Rear-wheel drive
• Ball differential
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Tire width/diameter: 27/79mm (front), 41/82mm (rear)
• CVA oil dampers
• Gear Ratio = 10.71:1
• Full ball bearings
• Type 540 motor and Electronic Speed Controller (ESC) are sold separately.

Need running gear?? Get our custom ready-to-run pack here:

• (1) 2-Channel Radio and Receiver
• (1) Steering Servo
• (1) ESC
• (1) 540-Size Motor
• (1) 7.2-7.4V Battery
• Compatible Charger
• Tamiya PS Paint
• Misc. Building Tools
