SkyRC

SKYRC T200 1-6S Lipo/ Nimh 100W 12A Dual Battery Charger AC/DC - SK-100155

SKYRC T200 1-6S Lipo/ Nimh 100W 12A Dual Battery Charger AC/DC - SK-100155

Regular price $214.95
Regular price Sale price $214.95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Contact us for more information

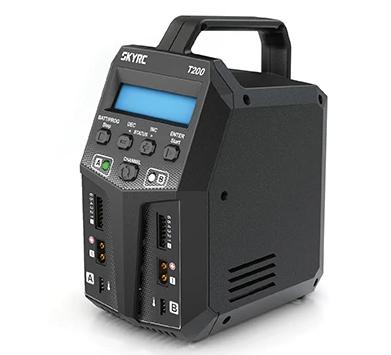

SKYRC T200 1-6S Lipo/ Nimh 100W 12A Dual Battery Charger AC/DC - SK-100155

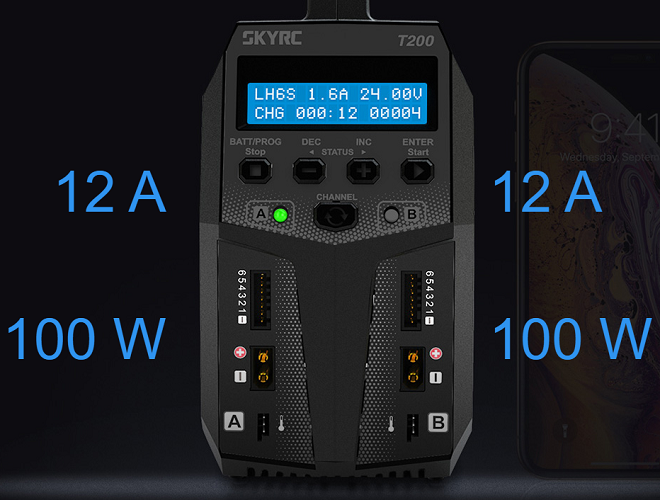

T200 comes ready to charge in the most compact design yet while taking up minimal space in the pit area. T200 will charger two batteries at the same time.

With each charging channel programmed and operating independently, T200 allows you to charge two batteries simultaneously, and it will intelligently and automatically charge the packs at once to their maximum capacity. To top of it, the cells being charged do not even necessarily have the same configuration or be of the same chemical type.

The T200 comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid). With the almost de facto standard of XT60* interface, plugging prevents reverse polarity and ensures super-solid connection.

Suitable to plug your XT60 battery plugs directly into the charger or run some female XT60 adapters to your battery plugs for other plug types.

SPECS:
  • Case Material: Plastic
  • Case Size: 178x135x96mm
  • Weight: 850g
  • Display Type: LCD
  • Display Backlight: Blue
  • DC Input Voltage: 11-18V
  • AC Input Voltage : 100-240V
  • Charge Wattage: 100W X 2
  • Discharge Wattage: 10W
BATTERY TYPES
  • LiPo/LiHV/LiFe/Li-Ion: 1-6cells
  • NiMH/NiCd: 1-15cells
  • Pb: 2-20V

BATTERY CAPACITY RANGE

  • NiMH/NiCd:100-50000mAh
  • LiPo/Li-Ion/LiFe/LiHV:100-50,000mAh
  • Pb: 100-50000mAh
  • Charge and Discharge

VOLTAGES
  • NiMH/NiCd: Delta peak detection
  • LiPo: 4.18-4.25V/cell
  • LiFe: 3.58-3.7V/cell
  • Pb: 1.8-2.0V/cell
  • LiIon: 4.08-4.2V/cell
  • LiHV: 4.25-4.35V/cell

DISCHARGE AND CUT-OFF VOLTAGE
  • NiMH/NiCd:0.1-1.1V/cell
  • LiPo:3.0-3.3V/cell
  • LiFe:2.6-2.9V/cell
  • LiIon: 2.9-3.2V/cell
  • LiHV: 3.1-3.4V/cell

Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)
Reading Voltage Range: 0.1-26.1V/cell
Charge Current: 0.1A-12.0A
Discharge Current: 0.1A-2.0A
Balance Cells: 2-6 cells
Balance Current: 500mA/cell
Safety Timer: 1-120minutes off
Charge Method:
CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
Memory: 10 different charge/discharge profiles

WHATS IN THE BOX:
1x Charger
1x 240V wall lead with Australian plug
