KYOSHO 1970 Dodge Charger Supercharged VE Gray 1:10 Fazer 4wd Mk2 w/ Syncro 2.4Ghz Radio & 4000kv Brushless Motor FZ02L - KYO-34492T1

The Kyosho EP Fazer Mk2 FZ02L VE 1970 Dodge Charger Supercharged ReadySet is a brushless chassis that has a classic muscle car look. The combination of a beautifully reproduced body with the FAZER series chassis can’t be beaten. This Charger body features a scale supercharger and molded light buckets for optional LED's (not included). To complete the look, Kyosho included functional flip headlight covers that can actuate by removing a screw from the headlight assembly.

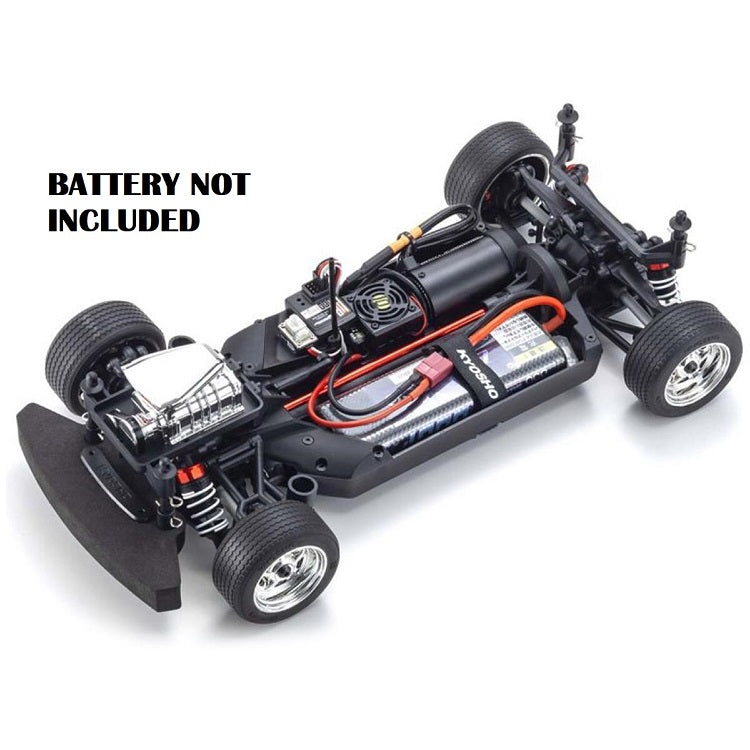

Featuring front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (not included) for compatibility with other 1/10 scale body styles, in addition to the included body. The symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, regardless of the power source. The Readyset package comes fully assembled and requires only charger and battery for the chassis, and batteries for the transmitter to start driving.

• Ultra-scale body specifications feature concealed headlights with open/close function and a Kyosho designed supercharger. In addition, LED compatible headlights, taillights, wipers, mirrors, and fuel fillers are being designed.
• Install a micro servo (sold separately), to operate the open/close function of the concealed headlights using the 3rd channel of the KT-231P + transmitter included in the Readyset.
• Elevate the scale finish by installing 97054 LED light unit series (sold separately) in the front and rear light buckets.
• Equipped with high-power TORX 10E motor. In addition, sintered pinion gear (32T) is equipped as standard to reliably transmit the full force from the motor.
• Waterproof BRAINZ 10 60A ESC with cooling fan provides stable power without heat loss.
• Equipped with vintage touring car (VTC) tires with compound optimized for brushless performance, and new color Rostyle-type wheel design to match the classic style of the Dodge Charger.
• Aluminum center shaft prevents twist and delivers high-RPM drive. Shaft-driven full-time 4WD touring chassis provides easy handling and is a joy to drive for anyone.
• Includes advanced functioning KS4031-06W steering servo as standard.
• Factory-completed Readyset only requires 4 x AA batteries for the transmitter as well as a charger and battery for the chassis.
• Full ball bearing specifications reduce drive loss in all drive components.
• Sealed differential and transmission realize excellent reliability, even in dusty parking lots.
• Equipped with a plated dummy brake disc and painted brake caliper for an elevated sense of scale.
• Uses hexagonal button screws throughout. Allows secure tightening torque to be applied and maintenance with fewer tools.
• Motor mount has mounting holes according to pinion gear, eliminating the need for tricky backlash adjustment. Supports pinions from 29T to 37T.
• Wide range of optional parts are available to further boost driving performance.

Length: 507mm

Width: 195mm

Body Width: 210mm

Height: 128mm

Chassis Height: 15mm

Wheelbase: 274mm

Tread (F/R): 167mm

Tires (F/R): 64×27.7mm

Gear Ratio: 6.54:1

Weight: 1680g

Motor:  TORX 10E 3652 4000kv 4-pole sensorless brushless motor with  3.17mm shaft

ESC: BRAINZ 10 60A Waterproof ESC with cooling fan for 2-3S lipo

Servo: KS4031-06W Steering servo (torque 6kg-cm / speed 0. 15 @6. 0V)
