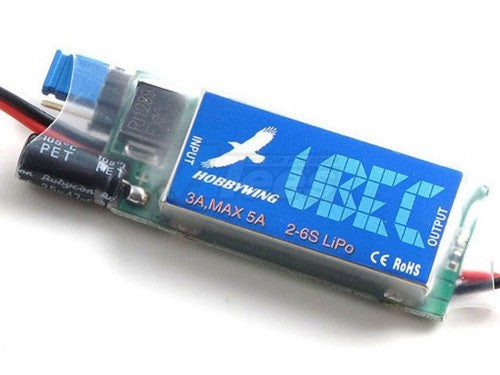

HOBBYWING UBEC-3A 2-6S Lipo - HW86010010

HOBBYWING UBEC-3A 2-6S Lipo - HW86010010

$29.95
$29.95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Contact us for more information

This UBEc is an external switching mode DC-DC regulator; it draws DC voltage from 2-6s Lipo batteries and drops it to a voltage level that is suitable for your receiver, a stable output of 3A. This unit is compatible with most brands of ESC

SPECS:

  • Output voltage/Current - 5V@3A or  6V@3A (adjust via the jumper cap)
  •  Input voltage - 5.5-26V (2-6S lipo or 5-18 cells Nimh/NiCd)
  • Size - 43x17x7mm
  • Weight - 11g
  • Ripple - <50mVp-p (@2A/12V input)
Compared with the linear mode UBEC, the overall efficiency of the switch-mode UBEC is much higher.

1  Specification

1.1 Output Voltage: 5V@3A or 6V@3A (Changeable with an output-voltage select switch )
1.2 Continuous output current: 3 Amps
1.3 Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMH /NiCd battery)
1.4 Size: 43mm*17mm*7mm (L*W*H)
1.7 Weight: 11g

2  Features

2.1 Designed with an advanced switch mode DC-DC regulator IC.
2.2 The output is powerful even working with 4 to 6 cells Lipo battery.
2.3 Battery polarity reversal protection.
2.4 A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference.
2.5 The working status is shown by an indicator (LED), lights when the output is in normal range.
