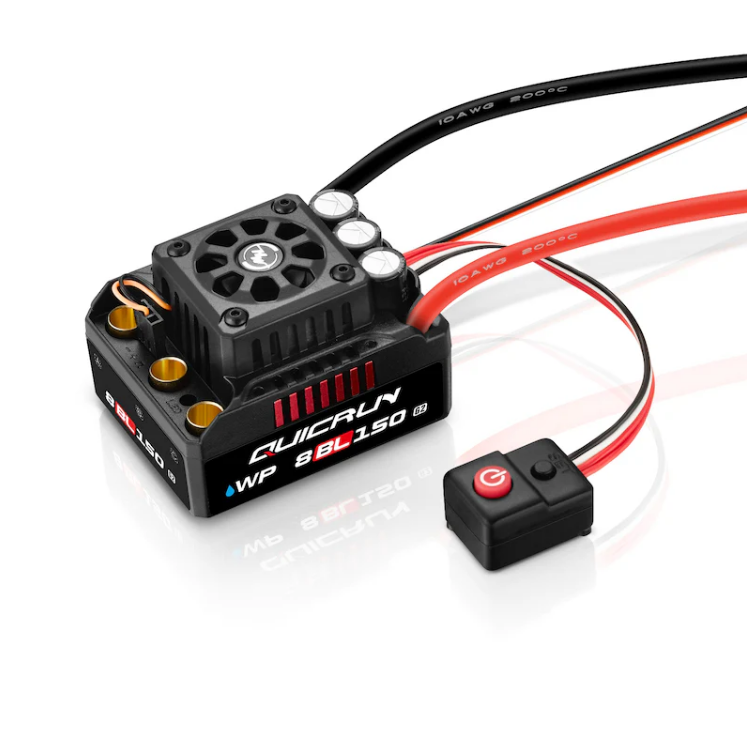

HOBBYWING QUICRUN 8BL150 G2 1:8 Sensorless Brushless ESC - HW30109003

HOBBYWING QUICRUN 8BL150 G2 1:8 Sensorless Brushless ESC - HW30109003

The second generation QuicRun WP 8BL150 controller demonstrates greater efficiency at low temperatures than its predecessor thanks to intelligent freewheeling technology. But an expected increase in performance is not everything with this G2 controller. The main focus was primarily on the further development of the BEC, previously only 6V at 3A, now switchable with 6V or 7.4V at a whopping 6A. The maximum current can even reach up to 12A. The BEC thus ensures that the controller can now also be used together with high-voltage servos.

The power board inside the controller is covered with a patented copper heat conduction rail to achieve rapid dissipation of the resulting internal heat. In addition, the built-in fan creates an extremely reliable cooling system that ensures that the controller always has a safe operating temperature. The integrated overheating protection function for the 2040uF capacitors can also effectively prevent the regulator from major damage due to overload.

FEATURES:

Comes with bare wires for battery plug, what plug do you need?

Protected against dust and splash water according to IP67
Programmable high performance switching mode BEC
Suitable for various powerful and high voltage steering servos
9 different acceleration programs from “soft” to very “aggressive” can be selected depending on the model and route.
Proportional brake with adjustable maximum braking force and automatic brake
Various protection functions, for example:
- Undervoltage caused by the battery
- Thermal overheating
- Loss of gas signal
- Capacitor overheating
Independent programming port - no need to pull the throttle cable out of the receiver beforehand.

Technical Data:

• Type: Brushless sensorless
• Current (continuous/short): 150A/950A
• Motor Limit:
  • 3-6S Lipo - 2000kv (4274)
  • 3-4S - 2600kv (4268)
  • 4S Lipo - 3000kv
  • 6S Lipo - 2400kv (4274)
• Number of cells: 3-6S LiPo
• BEC: 6V/7.4V with 6A (switchable)
• Waterproof: Yes (IP67 standard)
• Motor Plug Ports: 6.5mm gold (socket)
• Programming: LCD programming box G29 (Red card)
• Program Port shared with fan port
• Dimensions: 60x48x40.4mm
• Weight: 169.5g
• Application: 1/8 monster truck, stadium truck

Whats in the Box:

Quicrun WP 8BL150 ESC
Instructions (English)

USER INSTRUCTIONS
