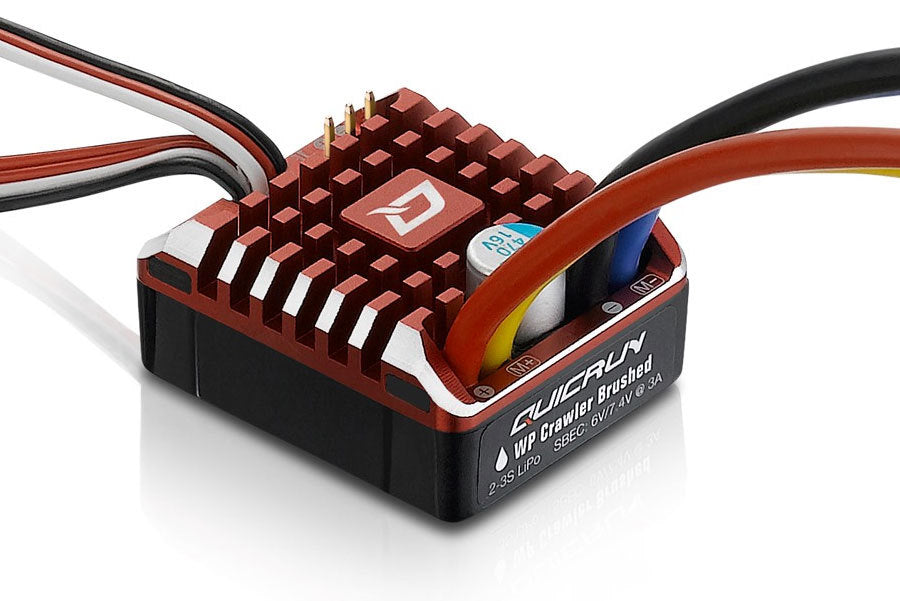

HOBBYWING Quicrun 1080 80A WP Crawler Brushed ESC - HW30112750
HOBBYWING Quicrun 1080 80A WP Crawler Brushed ESC - HW30112750
Couldn't load pickup availability
Special Design for 1/10th, 1/8th Brushed Crawlers
The reliable hardware combined with powerful software (features an array of
programmable parameters like start force, drag brake rate, and etc.)
creates an ideal power solution to 1/10th, 1/8th rock crawlers.
Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology -The adjustable PWM frequency combined with advanced DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.
Applicable to All Weather Conditions -The waterproof and dust-proof design allows the WP-Crawler-Brushed
to be used in all weather conditions without any issue of
damage caused to the ESC from water or debris.
Excellent Braking Performance - Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improves the drag brake and allows users to have the excellent braking performance.
Super Internal BEC - The built-in switch mode BEC with a maximum output of 6A and voltage
adjustable between 6V and 7.4V allows the use of various standard servos,
high voltage servos and other peripherals.
15 Programmable Parameters - The WP-Crawler-Brushed, which features 15 programmable parameter items,
is applicable to various vehicles and tracks.
Separate Programming/Fan Port - The separate PRG/FAN port on the ESC can power an external fan to maximize cooling
performance or connect the ESC to a LED program box for ESC programming.
A LED Program Box is Included - A standard, dedicated LED program box (included in the box) allows users to
program the WP-Crawler-Brushed easily.
- Water-proof and dust-proof, suitable for all weather races.
- Small size, with built-in capacitor module.
- 100% Waterproof
- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection, and much more
What's in the box?
- ESC
- LED program card
- Bonus accessories (heat sink, etc)
- User's manual
- Decal
Download Manual
