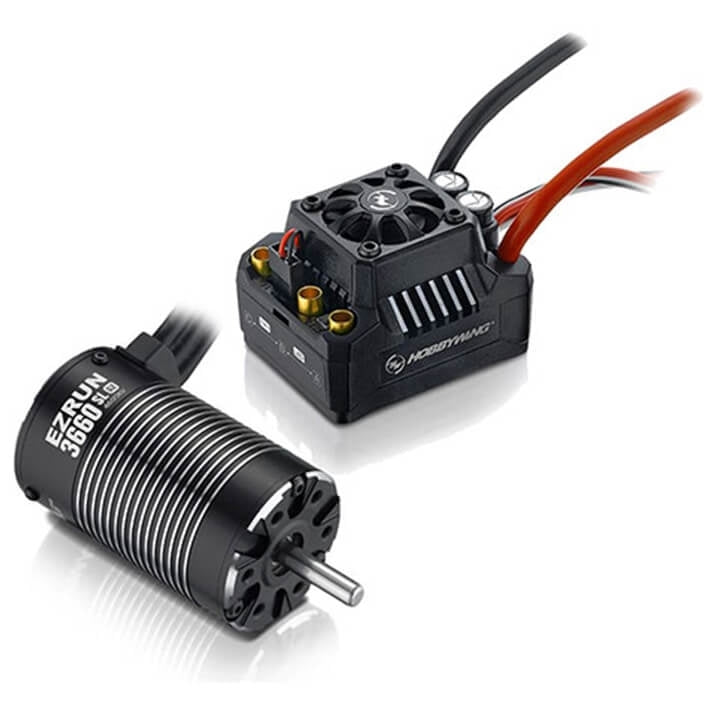

HOBBYWING MAX10 EZRUN 4000kv 3660SL 5mmS SCT Brushless Motor and 120A WP ESC Incl. 23T Pinion - HW38010201
HOBBYWING MAX10 EZRUN 4000kv 3660SL 5mmS SCT Brushless Motor and 120A WP ESC Incl. 23T Pinion - HW38010201
Couldn't load pickup availability
HOBBYWING MAX10 EZRUN 4000kv 3660SL 5mmS SCT Brushless Motor and 120A WP ESC Incl. 23T Pinion - HW38010201
ESC
The MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc. Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian. The user will have the choice of adusting the ESC parameters as per his perference and ability.
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.
Features:
- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- Innovative Filter Capacitor Thermal Protection
- Regular Firmware Updates Free of Charge
Spec:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Yes
- Cont./Peak Current: 120A/760A
- Input: 2-4S LiPo/6-12 Cells NiMH
- BEC Output: Switch Mode:6V/7.4V,3A
- Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
- Output Wires: Black-12AWG-200mm*3
- Input Connectors: No
- Output Connecotors: 4.0 Bullet Connectors (Female)
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Size: 49.0x39.5x34.7mm
- Weight: 105g
MOTOR
The HobbyWing EzRun 3660 G2 motor features an Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented). It has low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10/Max10 SCT ESC.
Features:
- Innovative 4-pole-8-magnet "staggered pole" rotor
- Built-in temperature sensor and sensor port
- O-ring seal fitted between the front end bell and motor case
- Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
- Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
- CNC machined aluminium housing, high purity copper windings and advanced rotor structure
- Rebuild-able design for easy routine maintenance
Specs:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Pole Count: 4
- KV Rating: 4000
- LiPo Cells: 2-3S
- No-load Current(A): 5.7
- Timing: 0 Degrees(Fixed)
- O.D.(mm): 36.00
- Length (mm): 60.00
- Shaft Diameter (mm): 5.0
- Weight (g): 268
