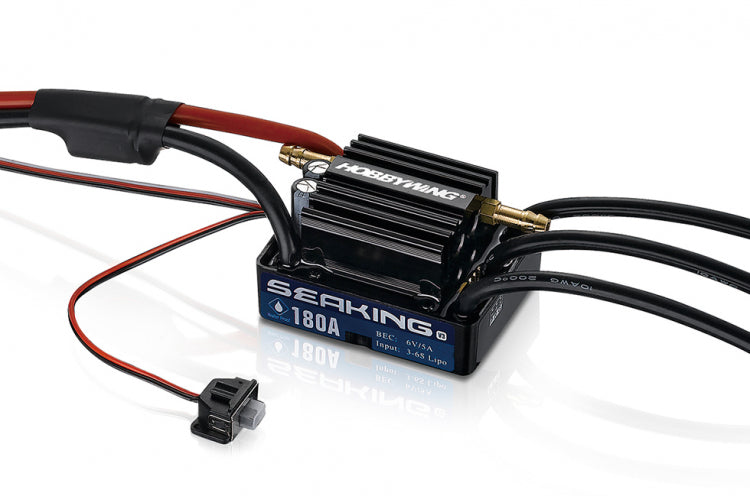

HOBBYWING 180A-V3 SeaKing Brushless Marine ESC - HW30302401
HOBBYWING 180A-V3 SeaKing Brushless Marine ESC - HW30302401
Couldn't load pickup availability
HOBBYWING 180A-V3 SeaKing Brushless Marine ESC - HW30302401
Performance & Reliability
Built with high-quality components and coupled with cutting-edge firmware,
the Seaking 60A V3.1 is featured by unmatched performance and reliability.
Multiple safety adjustable options are in use,
with the implementation of the low-voltage cutoff protection,
thermal protection and throttle signal loss protection.
Efficient Cooling System
The Hobbywing patented heat-conductive copper bar cover on the power board of
the Seaking 60A V3.1 can efficiently and effectively transfer heat to the integrated CNC machined
billet aluminum water cooled heat sink housing thus keeping
your ESC as cool as possible.
Waterproof Design
100% waterproof without the need of extra protection.
Built-in BEC
The built-in switch mode BEC with a maximum output of 6Amp and
voltage of 6V make this ESC compatible with high voltage servo.
Special Algorithm Design
The special algorithm implemented in the ESC make the acceleration
more incredible and sailing more stable.
Separate PRG/FAN Port
The separate PRG/FAN port on the ESC can connect ESC to a program
box (via the trio-color programming cable) and start ESC programming.
- Water resistant
- Water cooled
- 2-6s capable
Specs:
|
Model / SKU
|
SeaKing-180A-V3/ 30302401 |
|
Cont./Peak Current
|
180A/1080A |
| Boat Applicable | Boat length < 130cm |
| Input / | 2-6S Lipo |
| BEC Type / BEC Output | Switch Mode /6V/5A |
| External Programming Port |
Available |
| Water Cooling Pipe |
(Inside / Outside): Ф3.0 / 5.4mm
|
| Input wire | Red-10AWG-200mm*1 Black-10AWG-200mm*1 |
| Output wire | Black-10AWG-150mm*3 |
| Size / Weight | 72X48X36.6mm (Include the Water Cooling Pipe) 207g |
Seaking offer 3 motors, they do not indicate which motors are most appropriate to run with this esc.
Seaking 3660 3180kv Brushless 4-Pole 2-4S Lipo
Seaking 2848 3900kv Brushless 2-Pole 2-3S Lipo
Seaking 2040 4800kv Brushless 2-Pole 2-3S Lipo
