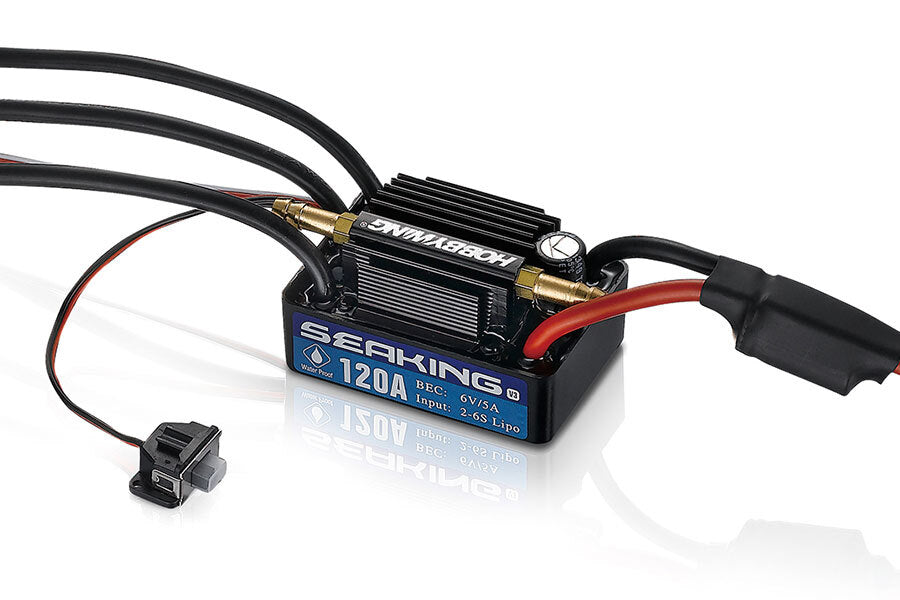

HOBBYWING 120A-V3 Seaking Sensorless WP Brushless Marine ESC - HW30302360

HOBBYWING 120A-V3 Seaking Sensorless WP Brushless Marine ESC - HW30302360

Built with high-quality components and coupled with cutting-edge firmware, the Seaking V3 is featured by unmatched performance and reliability. Multiple safety adjustable options are in use, with the implementation of the low-voltage cutoff protection, thermal protection and throttle signal loss protection.

The Hobbywing patented heat-conductive copper bar cover on the power board of the Seaking V3 can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum water cooled heat sink housing thus keeping your ESC as cool as possible.

HobbyWing Seaking V3 Series Features:

• Special Algorithm Design
• Built-in BEC
• Waterproof Design
• Separate PRG/FAN Port
• Reliability and performance
• Efficient Cooling system

Spec Check:

• Brushed/Brushless: Brushless
• Waterproof: Yes
• Cont./Peak Current: 120A/720A
• Input: 2-6S LiPo/6-18 Cells NiMH
• BEC Output: Switch Mode:6V/5A
• Input Wires: Red-12AWG-200mm*1, Black-12AWG-200mm*1
• Output Wires: Black-12AWG-150mm*3
• Input Connectors: No
• Output Connecotors: No
• Size: 68.5x39.4x32mm
• I.D./O.D. of the Water Cooling Pipe: ?3.0/5.4 mm
• Weight: 150g

 USER MANUAL

Seaking offer 3 motors, they do not indicate which motors are most appropriate to run with this esc.

Seaking 3660 3180kv Brushless 4-Pole 2-4S Lipo

Seaking 2848 3900kv Brushless 2-Pole 2-3S Lipo

Seaking 2040 4800kv Brushless 2-Pole 2-3S Lipo
