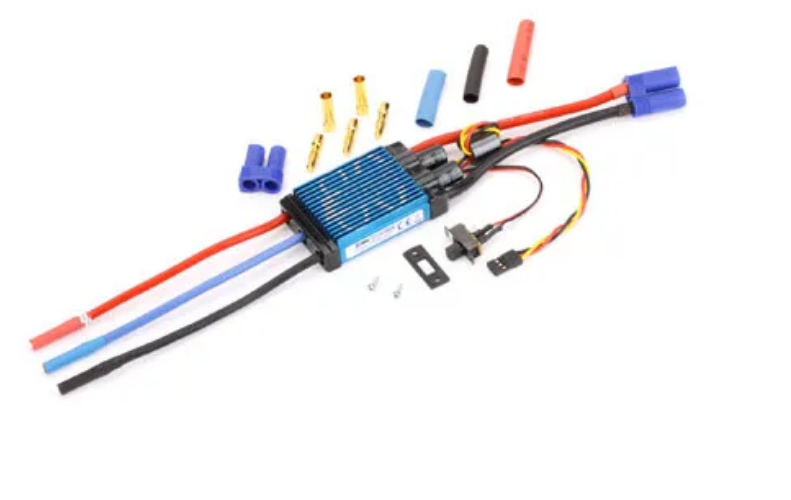

E-FLITE 80A Pro Switch-Mode BEC Brushless ESC V2 w/ EC5 - EFLA1080
E-FLITE 80A Pro Switch-Mode BEC Brushless ESC V2 w/ EC5 - EFLA1080
Couldn't load pickup availability
E-FLITE 80A Pro Switch-Mode BEC Brushless ESC V2 w/ EC5 - EFLA1080
When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.
Features
- Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
- 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
- Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start-up rate - .25 second or 1 second
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
- Two operating modes–Airplane or Heli
- Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
Specs
- Forward - Yes
- Brake - Yes
- Time Delay Brake - Yes
- Continuous Maximum Current - 80A
- Input Connector Types - EC5, 10AWG
- Output Connector Types - 4mm gold bullet, 12AWG
- Momentary Peak Current - 100A (15 seconds) Proper Cooling Required
- Length - 3.0 in (77mm)
- Width - 1.6 in (41mm)
- Height - 0.62 in (15.5mm)
- Weight - 3.75 oz (106 g)
- BEC Voltage - 5.5 Volt switch-mode
- Overload Protection - Yes
- Wire Gauge - 10 awg input leads; 12 awg output leads
- Cells w/BEC - 9- to 18-cell Ni-MH, 3–6S Li-Po
- Auto Cutoff - Yes
