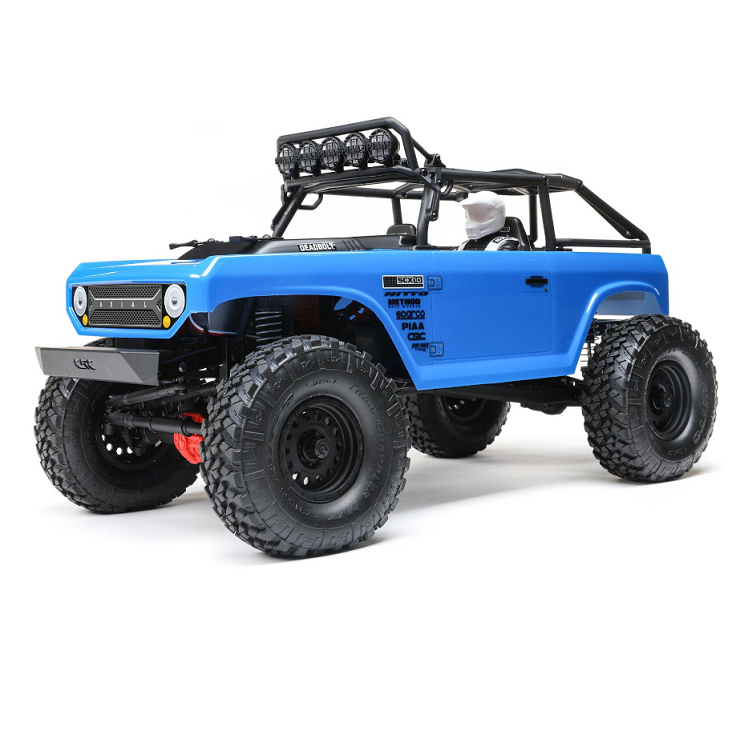

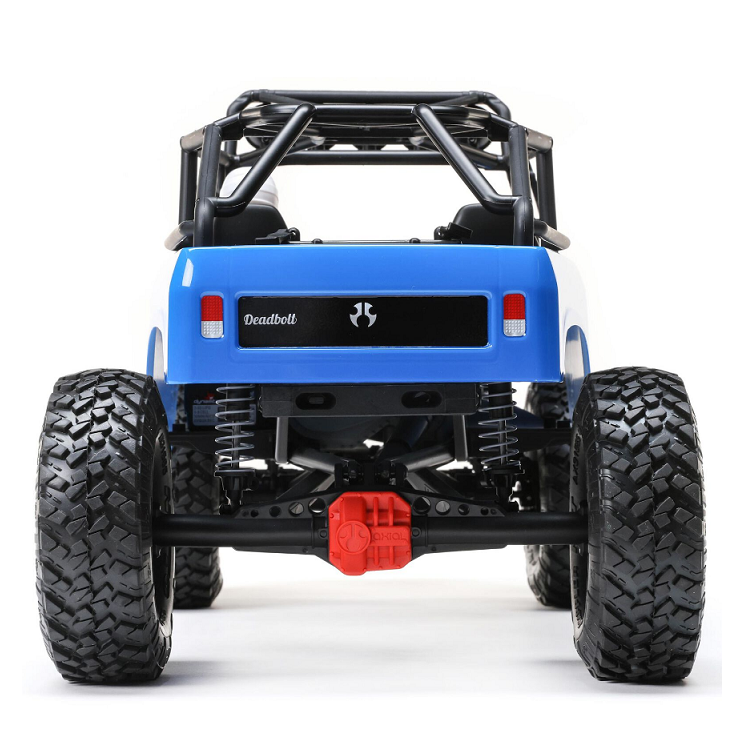

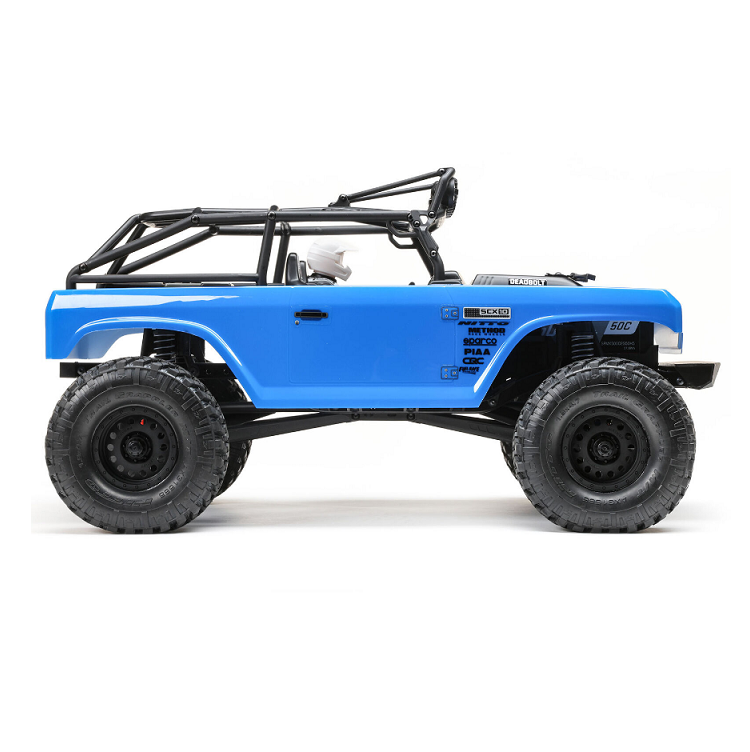

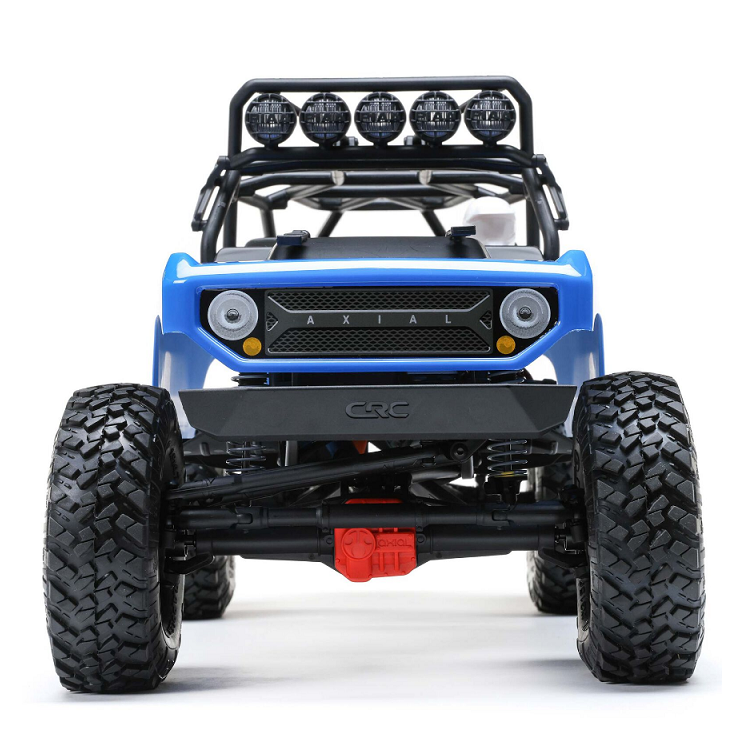

AXIAL SCX10 II Deadbolt 1:10 Crawler Blue - AXI03025T1

AXIAL SCX10 II Deadbolt 1:10 Crawler Blue - AXI03025T1

The Axial SCX10 II Deadbolt RTR 4WD Rock Crawler is a highly capable, and easily upgradeable RC rock crawler that's perfectly suited for both experienced adventurers and hobby newcomers. This rock crawler is built on the proven SCX10 II chassis and comes equipped with oil-filled shocks and scale Nitto Trail Grappler tires. By combining both rugged scale looks with exceptional handling performance, this truck is ready to take on twisty, rough terrain.

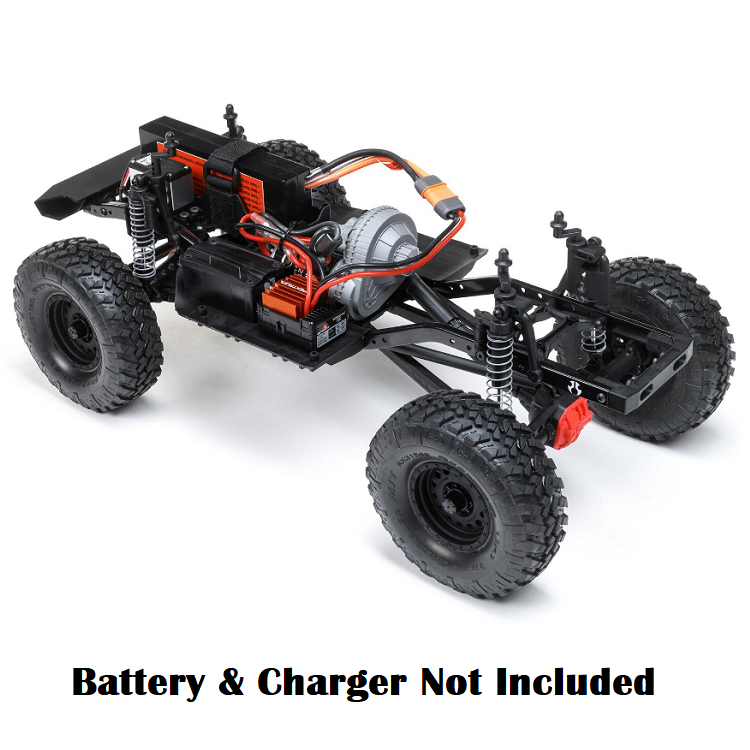

Using the SCX10 II chassis this chassis features durable steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy. The SCX10 II platform also allows for an adjustable wheelbase, adjustable body mounts, adjustable bumper mounts with swaybar mounting points, and mounting points for an optional 2-speed transmission and servo winch (both sold separately). The included LCX AX10 transmission, with a three-gear layout, heavy-duty slipper, sealed gear cover, and all-metal gears, accepts a wide range of gearing options. Its overall ratio can be adjusted using optional pinion and spur gear choices for super high speed or competition-level crawling speed.

Just as a full-size truck has its steering box located on the frame, Axial places the Deadbolt's adjustable servo mount on the SCX10 II chassis frame and allows a wide range of servos to be used. Universal joint axles permit up to 45° of steering and provide an efficient, high-performance drivetrain. The single-piece AR44 front and rear axles feature a molded truss for extreme durability. The pinion gear is 6mm above the differential pinion center-line for higher ground clearance and improved driveshaft angles. Metal dog bones and helical cut internal gears are standard equipment, and the drivetrain includes full, high-quality ball bearings.

Features:

• Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity
• Single-piece AR44 front and rear axles with molded truss for extreme durability
• High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact
• LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed
• The optimized gear ratio of 3.75 reduces torque twist
• Hypoid-cut metal gears
• Larger load-rated bearings for durability
• 8° Kingpin axle that eliminates tyre scrub
• 10° Increment adjustments for knuckle carriers and straight axle adapters
• Chassis mounted servo with adjustable servo mounting system
• Oil-filled, coilover shocks with threaded shock bodies
• Licensed CRC front bumper
• 3-piece WB8 HD Wildboar front and rear driveshafts with a strengthened slider-floater tube to reduce flex and fatigue
• Easy-access, water-resistant receiver box

Specifications:
Scale: 1/10
Length: 460mm
Width: 224mm
Track Width: 190.5mm
Height: 229mm
Ground Clearance: 68mm
Weight: 2.1kg
Gear Pitch: 32P
Pinion: 14T
Spur Gear: 56T
Final Drive Ratio: 40.44:1
Drivetrain: 4WD
Motor Type: Brushed
Motor Size: 540
Water-Resistant: Yes
Connector Type: IC3
Completion Level: Ready-To-Run
Approximate Assembly Time: Less than 1 Hour

Includes:

• (1) 1/10 SCX10 II Deadbolt 4WD Brushed RTR with:
• (1) Spektrum SLT2 2.4GHz Radio System
• (1) Dynamite 35-Turn 540 Brushed Motor
• (1) Spektrum 40A Brushed ESC with IC3 Connector
• (1) Spektrum SLR300 3-Channel SLT FHSS 2.4GHz Receiver
• (1) Spektrum S614 14.5kg torque WP Metal Gear Servo, 23T
• (1) Product Manual
• (4) AA Transmitter Batteries

Needed to Complete:

• 1x 2-3S LiPo Battery with EC3 or IC3 connector
• Compatible Battery Charger
