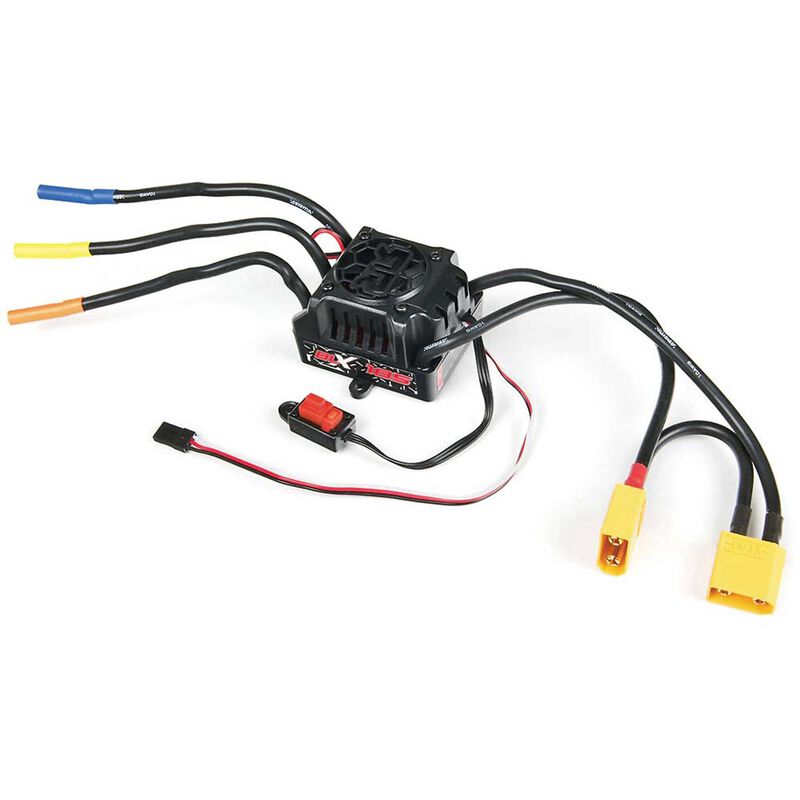

ARRMA BLX185 1:8 Sensorless Brushless 150A 6S ESC AR390211 - ARAM2000
ARRMA BLX185 1:8 Sensorless Brushless 150A 6S ESC AR390211 - ARAM2000
Regular price
$269.95
Regular price
Sale price
$269.95
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
BLX185 SPECIFICATIONS |
|
| POWER TYPE | BLX Brushless Extreme Performance |
| ESC TYPE | 150AMP Continuous current capacity |
| BATTERY USAGE |
2x 2S LiPo (7.4V) 1x or 2x3S LiPo (11.1) 1x 4S LiPo (14.8) 1x 6S LiPo (22.2V) |
| LOW VOLTAGE CUT-OFF (LVC) | 3.2V per cell |
| THERMAL PROTECTION TEMPERATURE | 105°C / 221°F |
| OVER-VOLTAGE PROTECTION | Over 6S LiPo (22.2V) |
| BEC VOLTAGE | 6V |
| BEC CURRENT | 3A |
| ESC LENGTH | 57.5mm / 2.26" |
| ESC HEIGHT | 38.9mm / 1.53" |
| ESC WIDTH | 59.5mm / 2.34" (Including hold-down tabs) |
| ESC WEIGHT | 196g / 6.91oz |
| RECEIVER WIRE LENGTH | 200mm / 7.87" |
| BATTERY WIRE LENGTH | 165mm / 6.5" |
| MOTOR WIRE LENGTH (INCLUDING CONNECTOR) | 130mm / 5.12" |
| SWITCH LENGTH | 29.3mm / 1.15" |
| SWITCH WIDTH | 12.8mm / 0.5" |
| SWITCH HEIGHT | 18mm / 0.71" |
| MOTOR BULLET CONNECTOR SIZE | 4mm / 0.16" |
| WIRE SPECIFICATIONS | 10AWG |
| ESC BATTERY CONNECTOR TYPE | XT90 series |
