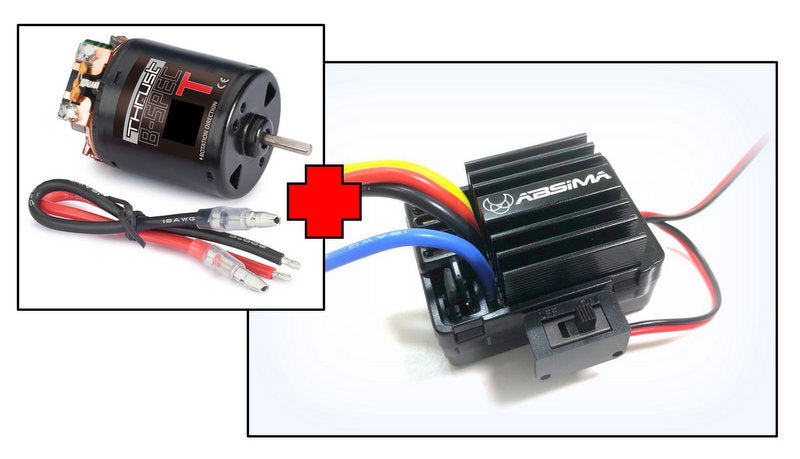

ABSIMA 17T Brushed Thrust Motor & 40A 2-3S ESC - AB2100014

ABSIMA 17T Brushed Thrust Motor & 40A 2-3S ESC - AB2100014

$129.95
$129.95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Contact us for more information

ABSIMA 17T Brushed Thrust Motor & 40A 2-3S ESC - AB210001

This set is specially designed for new beginners and intermediate modelers. It not only carries forward the outstanding quality of ABSIMA (powered by HOBBYWING) products but simplifies the operation.

FEATURES:
  • Water-proof and dust-proof for all weather races
  • Small size with built-in capacitor module
  • Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
  • Easily programmed with “jumpers”


ESC SPECS:

  • Application: On-road/Off-road
  • Cont. / Burst Current - forward: 40A / 180A
  • Cont. / Burst Current - reverse: 20A / 90A
  • Input: 2-3S LiPo / 5-9 Cells NiMH
  • Battery "Low-Power" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
  • Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
  • Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
  • Maximum Reverse Force: 50%
  • Overheat Protection: 100°
  • Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
  • Built-in BEC: 2A/6V (Linear Mode BEC)
  • Plug System: Tamiya
  • Plug & Drive System: yes
  • On/Off Switch: yes
  • Dimmension (L/W/H): 46.5*34.0*28*5 mm
  • Weight: 70g



MOTOR SPECS:

  • Turns: 17x2T
  • RPM: 28.800
  • Continuous Current: 155W
  • Operation V: 7.2V-7.4V
  • Motor size: 540
  • Shaft length: 12,3mm
  • Shaft Ø: 3,19mm
  • Motor length: 53,2mm
  • Motor Ø: 35,7mm
  • Brushess & Springs changeable: yes



What's Included:

  • WP1040 Brushed ESC
  • 17T Electric Motor
  • Manual
