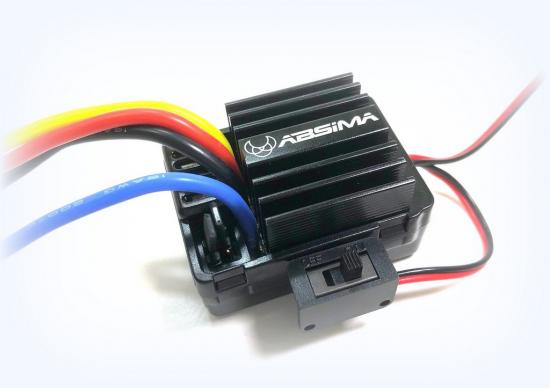

ABSIMA 1:10 Brushed ESC 40A 3S Max suit Car/ Boat - AB2100003

ABSIMA 1:10 Brushed ESC 40A 3S Max suit Car/ Boat - AB2100003

$69.95
$69.95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Contact us for more information

ABSIMA 1:10 Brushed ESC 40A 3S Max suit Car/ Boat - AB2100003

FEATURES:
  • Water-proof and dust-proof for all weather races
  • Small size with built-in capacitor module
  • Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
  • Easily programmed with “jumpers”


SPECIFICATION:

  • Application: Crawler & Boat
  • Cont. / Burst Current - forward: 40A / 180A
  • Cont. / Burst Current - reverse: 20A / 90A
  • Input: 2-3S LiPo / 5-9 Cells NiMH
  • Battery "Low-Power" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
  • Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
  • Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
  • Maximum Reverse Force: Boat 25% / Crawler: 100%
  • Overheat Protection: 100°
  • Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
  • Built-in BEC: 2A/6V (Linear Mode BEC)
  • Plug System: Tamiya
  • Plug & Drive System: yes
  • On/Off Switch: yes
  • Dimmension (L/W/H): 46.5*34.0*28*5 mm
  • Weight: 70g

PLEASE NOTE:

Absima states that this ESC is suitable to use in a crawler but, it has no drag brake.
